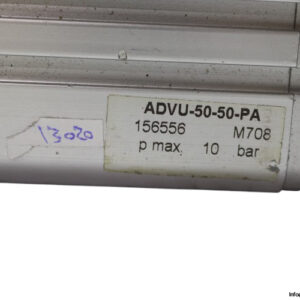

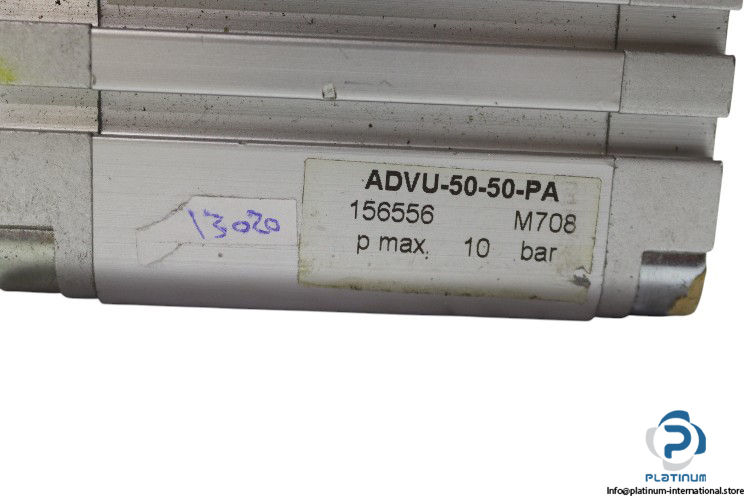

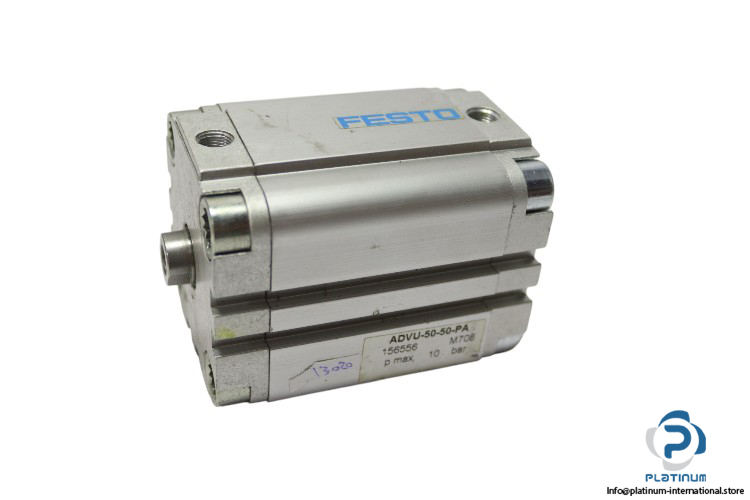

Festo ADVU-50-50-PA Compact Cylinder
The Festo ADVU-50-50-PA (Part No. 156556) is a high-performance compact cylinder built for precision pneumatic applications. Designed for space-saving installation and reliable operation, it features elastic cushioning at both ends and a durable double-acting mechanism.
- Manufacturer: Festo
- Type: Compact Cylinder
- Model: ADVU-50-50-PA
- Part No.: 156556
Technical Information:
- Stroke: 50 mm
- Piston Diameter: 50 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Mounting Position: Optional
- Mode of Operation: Double-acting
- Piston-Rod End: Female thread
- Design: Piston, Piston rod
- Position Detection: Via proximity switch
- Variants: Piston rod at one end
- Operating Pressure: 0.08 MPa “ 1 MPa / 0.8 “ 10 bar / 11.6 “ 145 psi
- Operating Medium: Compressed air
- Pneumatic Connection: G1/8
- Ambient Temperature: -20 … 80 °C
