Manufacturer: FESTO

Type: Double Acting Compact Cylinder

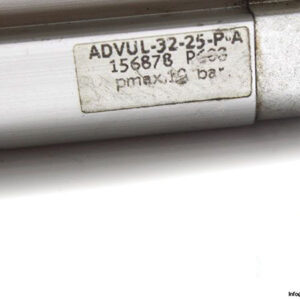

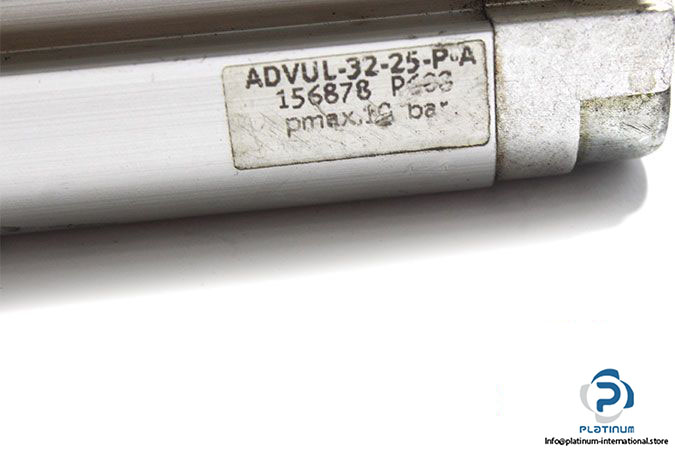

Model: ADVUL-32-25-P-A

Part No.: 156878

Materials

  Piston rod: High alloy stainless steel

  Cylinder Tube: Wrought Aluminum alloy

Stroke Length: 25 mm

Piston Diameter: 32 mm

Piston rod end: Female thread

Operating Pressure: 1 … 10 bar

Mode of operation: Double-acting

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Variants: One-Sided Piston Rod

Pneumatic Connection: G1/8

Impact energy at the end positions: 0,40 j

Theoretical force at 6 bar, Return flow: 415 N

Theoretical force at 6 bar, flow: 483 N

Temperature: -20 … 80 °C

Weight: 0.40 kg
