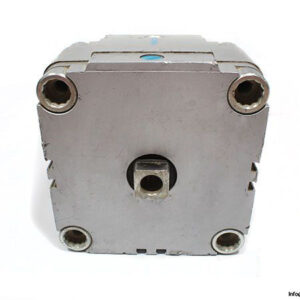

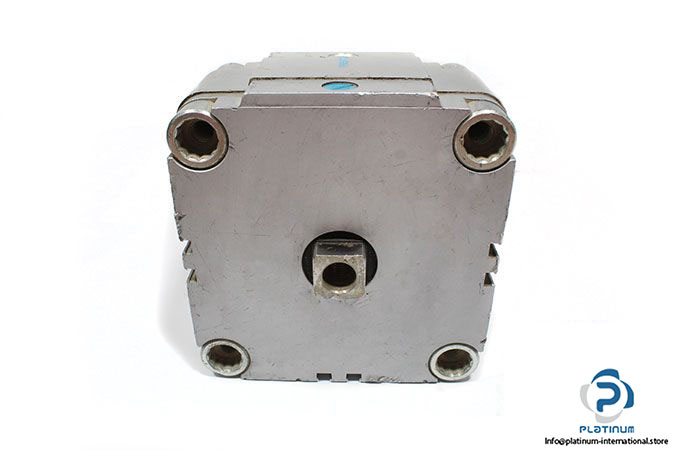

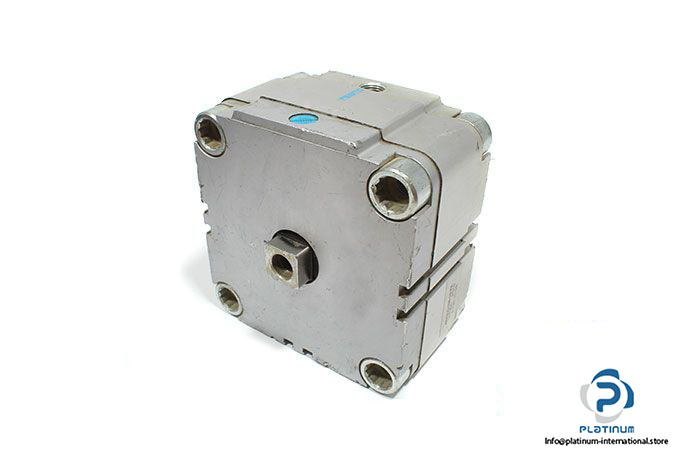

Manufacturer: FESTO

Type: Single Acting Compact Cylinder

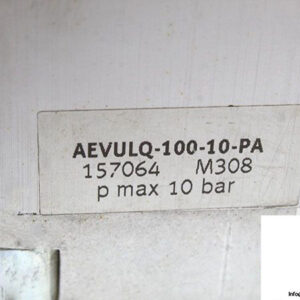

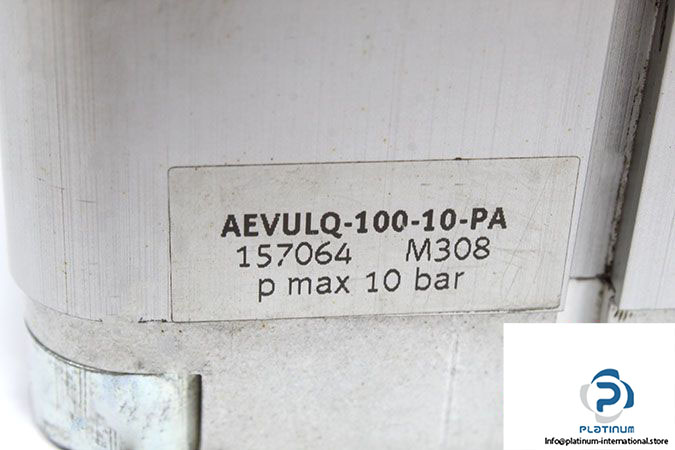

Model: AEVULQ-100-10-PA

Part No.: 157064

Material

Cover: Wrought Aluminum alloy

Piston rod: High alloy steel, non-corrosive

Cylinder barrel: Wrought Aluminum alloy

Stroke Length: 10 mm

Piston Diameter: 100 mm

Piston rod end: Female thread

Operating Pressure: 0.6 … 10 bar

Mode of operation: Single-Acting, Pulling Action

Pneumatic Connection: G1/4

Cushioning: Flexible cushioning rings/plates at both ends

Position sensing: For proximity sensing

Temperature: -20 … 80 °C

Weight: 3.00 kg
