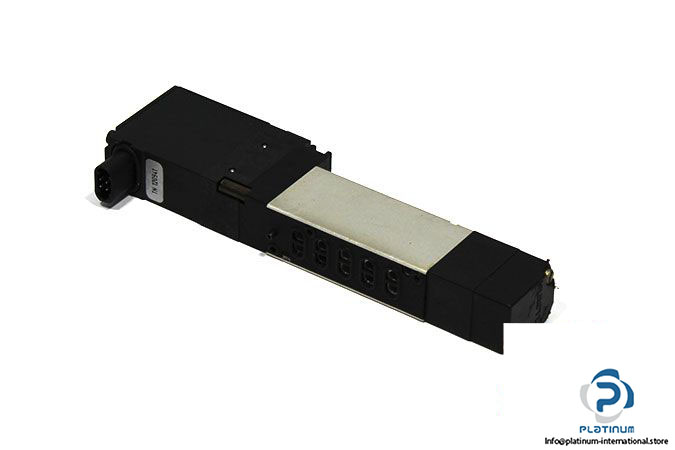

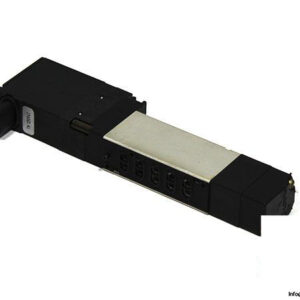

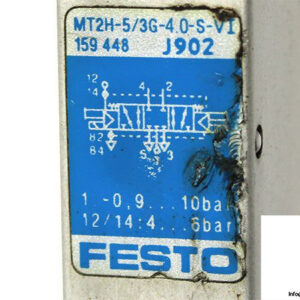

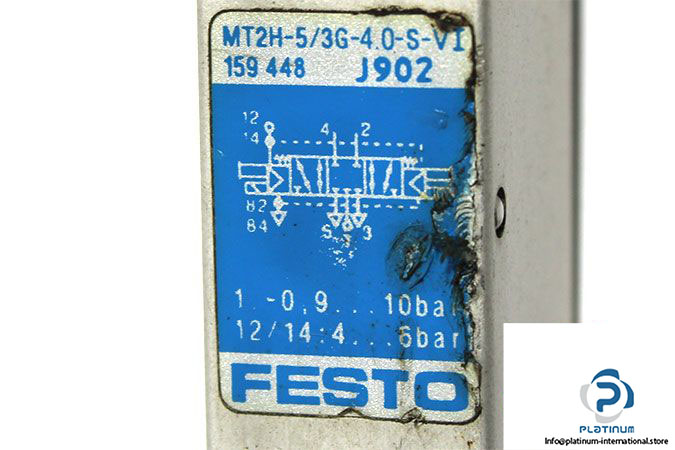

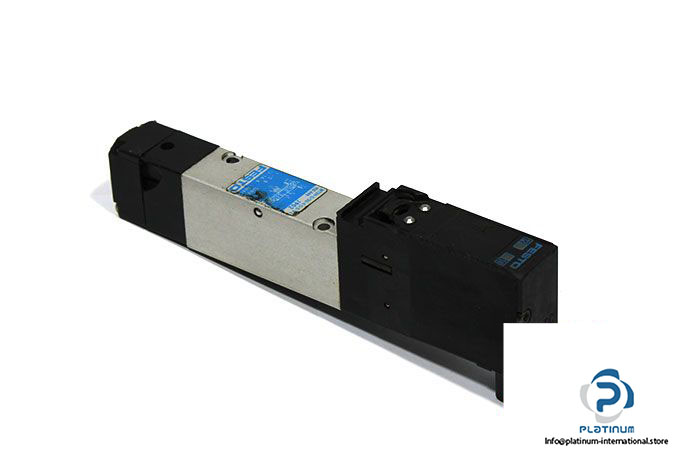

FESTO MT2H-5/3G-4,0-S-VI-B DOUBLE SOLENOID VALVE

The FESTO MT2H-5/3G-4,0-S-VI-B is a high-performance double solenoid valve designed for precise pneumatic control in automated systems. With a robust die-cast aluminium body and a 5/3 closed function, it is ideal for demanding industrial environments requiring reliable switching and airflow regulation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MT2H-5/3G-4,0-S-VI-B
Part No.: 159448

Technical Information

• Fluid: Compressed Air
• Design: Piston Slide
• Valve Function: 5/3 Closed
• Type of Actuation: Electrically
• Medium Pressure: -0.9 / 10 bar
• Pilot Pressure: 4 … 6 bar
• Nominal Flow Rate: 600 l/min
• Supply Voltage: 24 V DC
• Power Consumption: 2.5 W
• Material: Die-cast Aluminium
• Pneumatic Connection: Sub-base
• Ambient Temperature: -5 / 50 °C
