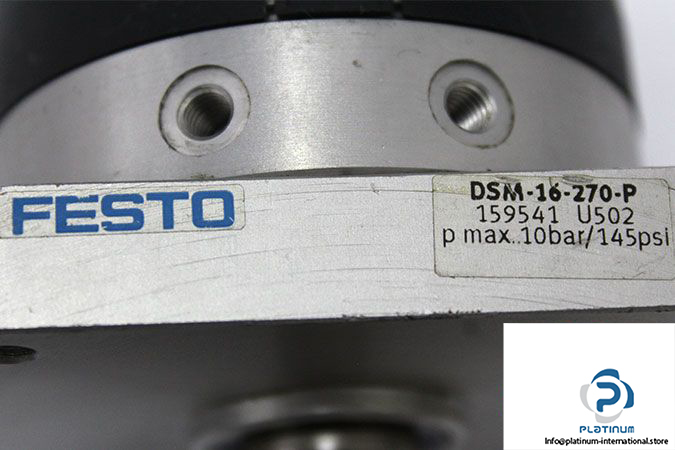

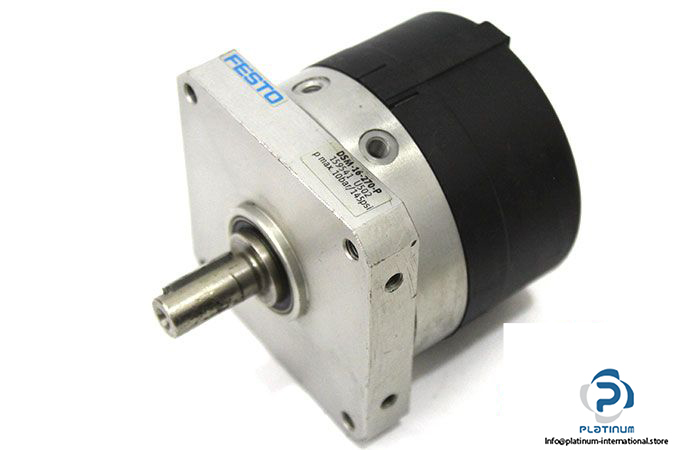

Manufacturer: FESTO
Type: Rotary Actuator
Model: DSM-16-270-P
Alternative Model: DSM-16-270-P-A-B
Part No.: 159541
Alternative Part No.: 547574
Materials
Housing: Wrought Aluminum Alloy
Drive Shaft Material: Steel, Nickel-Plated
Size: 16
Cushioning Angle: 1.4 deg
Range of Swivel Angle: 0…270 deg
Fluid: Air
Operating Pressure: 1.8…10 bar
Ambient and Fluid Temperature: -10…60 °C
Max. Axial Force: 30 N
Max. Radial Force: 75 N
Design: Rotary
Mode of Operation: Double-acting
Position Sensing: For Proximity Sensor
Pneumatic Connection: M5
Weight: 0.44 kg
