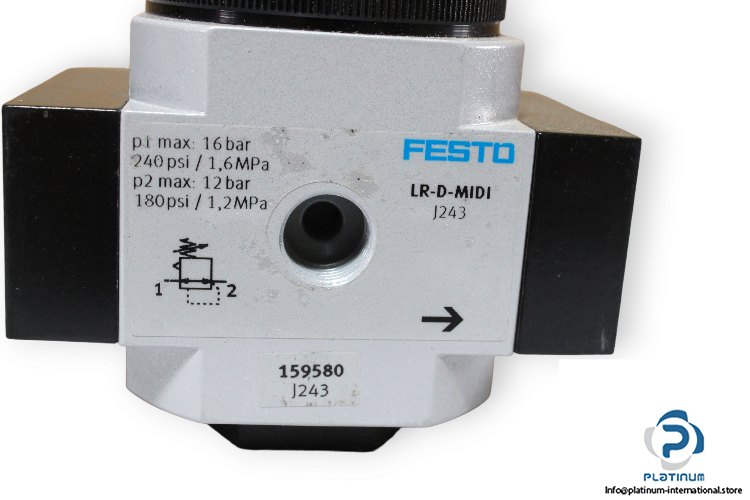

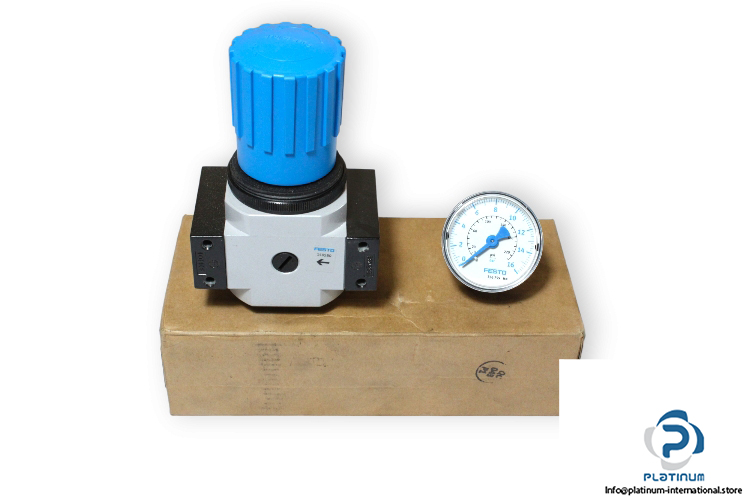

FESTO LR-3/8-D-MIDI Pressure Regulator

The FESTO LR-3/8-D-MIDI Pressure Regulator is a reliable and efficient air preparation unit designed for stable pressure control in pneumatic systems. Its robust construction and precise regulation performance make it suitable for a wide range of industrial applications.

Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-3/8-D-MIDI
Part Number: 159580
Size: Midi
Series: D

Technical Information

• Actuator Lock: Rotary knob with detent
• Structural Design: Directly controlled diaphragm regulator

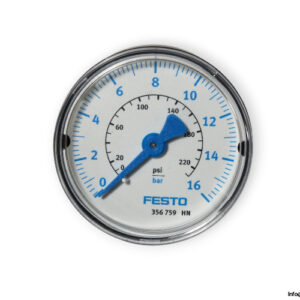

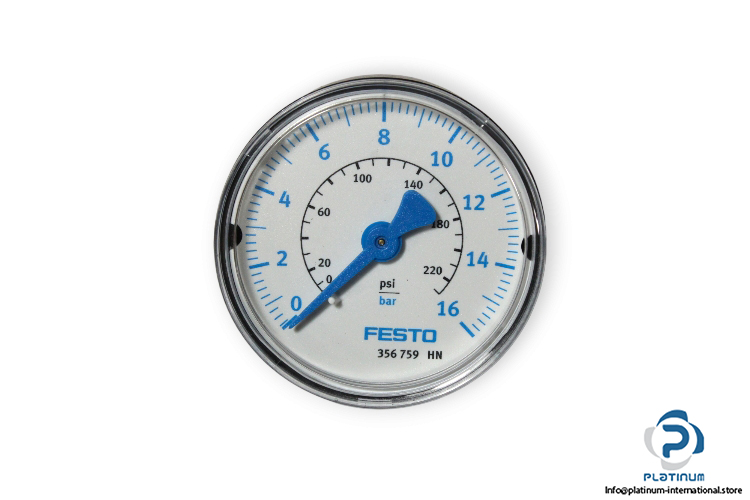

• Pressure Gauge: With pressure gauge
• Operating Pressure: 0 to 16 bar
• Pressure Regulation Range: 0.5 to 12 bar
• Maximum Pressure Hysteresis: 0.2 bar
• Standard Nominal Flow Rate: 3200 liters per minute
• Operating Medium: Compressed air
• Pneumatic Connection: G3/8
• Ambient Temperature: minus 10 to 60 degree Celsius
• Material Housing: Die cast zinc
