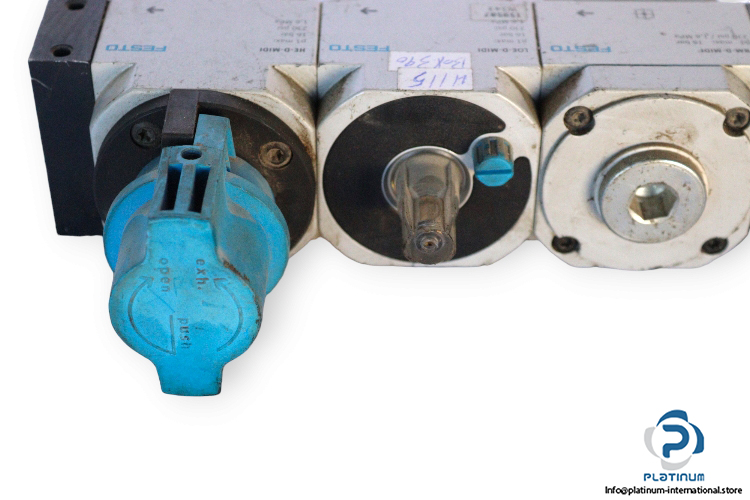

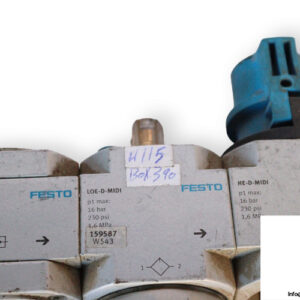

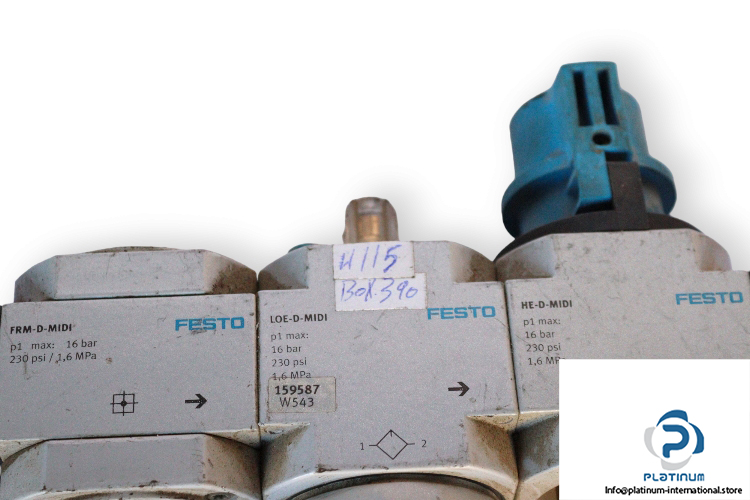

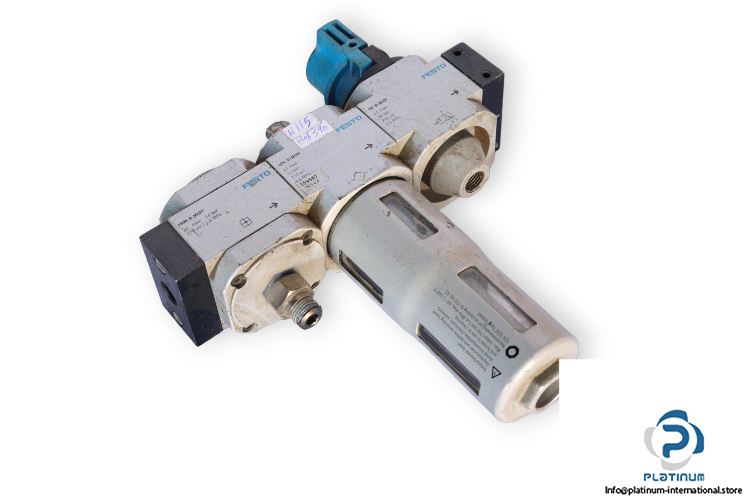

FESTO LOE-D-MIDI LUBRICATOR WITH BRANCHING MODULE AND ON/OFF VALVE

The FESTO LOE-D-MIDI is a high-performance standard mist lubricator designed for industrial compressed air systems. Equipped with a metal bowl guard for safety and large oil capacity, this lubricator ensures efficient operation and durability. The assembly includes the FESTO FRM-D-MIDI branching module and the FESTO HE-D-MIDI on/off valve for advanced pneumatic control and system integration.

Manufacturer: FESTO
Type: Lubricator
Model: LOE-D-MIDI
MNR: 159587

Technical Information – Lubricator

• Fluid: Compressed Air
• Design Structure: Proportional Standard Mist Lubricator
• Bowl Guard: Metal Bowl Guard
• Oil Capacity Max.: 110 cm³
• Operating Pressure: 1 / 10 bar
• Minimum Flow Rate for Lubricator Function: 8 l/min
• Standard Nominal Flow Rate: 6100 l/min
• Ambient Temperature: -10 / 60 °C
• Pneumatic Connection: G1/2

Attachment: FESTO FRM-D-MIDI Branching Module

Manufacturer: FESTO
Type: Branching Module
Model: FRM-D-MIDI
Part No.: 170685

• Operating Pressure: 0 / 16 bar
• Nominal Flow Rate: 8200 l/min
• Operating Medium: Compressed Air
• Ambient Temperature: -10 / 60 °C
• Pneumatic Connection: G1/2, G1/4

Attachment: FESTO HE-D-MIDI On/Off Valve

Manufacturer: FESTO
Type: On/Off Valve
Model: HE-D-MIDI
Part No.: 170682

• Operating Pressure: 0 / 16 bar
• Pneumatic Connection, Port 3: G1/4
• Material Housing: Die-Cast Aluminium
