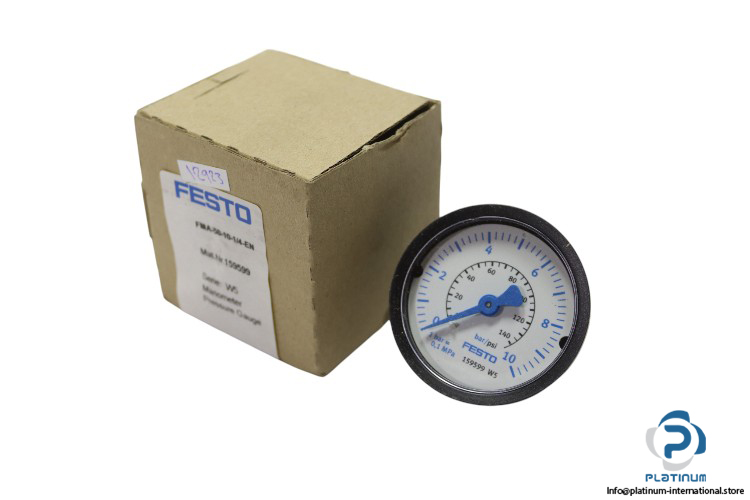

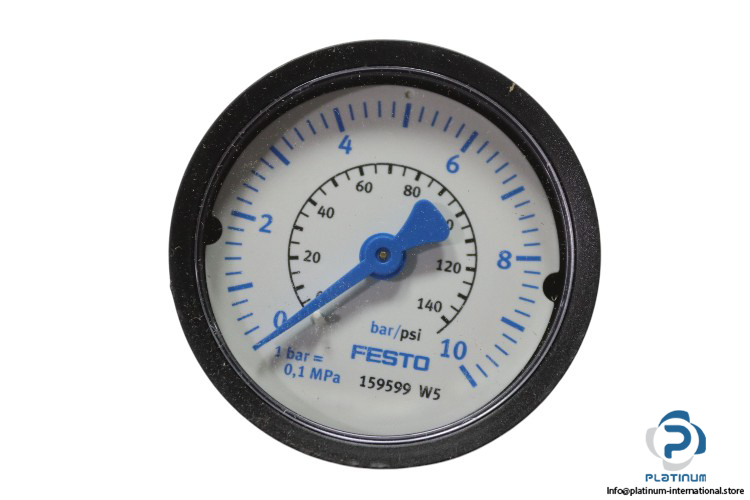

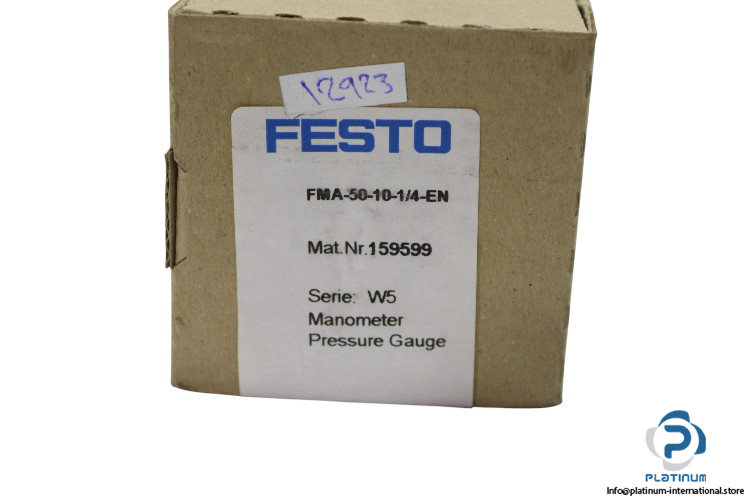

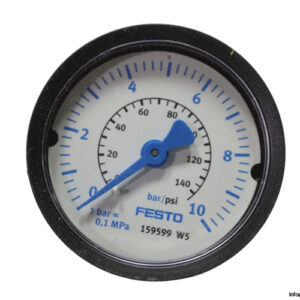

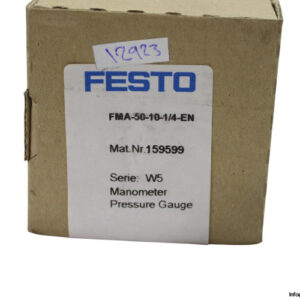

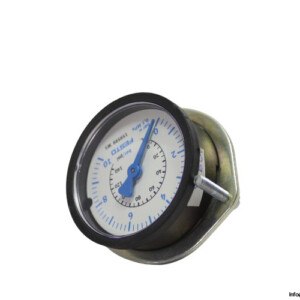

Festo FMA-50-10-1/4-EN Flanged Pressure Gauge

The Festo FMA-50-10-1/4-EN Flanged Pressure Gauge is designed for precise pressure measurements in industrial environments. With a 50 mm nominal size and a display range of 0 bar to 10 bar, this gauge offers high reliability and durability for a wide range of applications.

Manufacturer: FESTO

Type: Flanged Pressure Gauge

Model: FMA-50-10-1/4-EN

MRN: 159599

Technical Data:

• Pressure Gauge Nominal Size: 50
• Type of Mounting: Front panel mounting
• Display Range: 0 bar – 10 bar
• Pneumatic Connection: G1/4
• Measurement Accuracy Class: 2.5
• Ambient Temperature: -20 °C … 60 °C
• Housing Material: ABS
