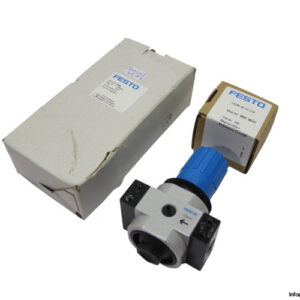

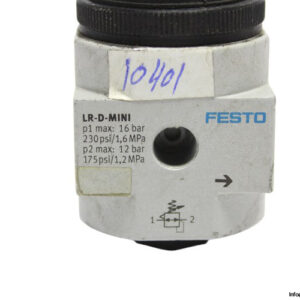

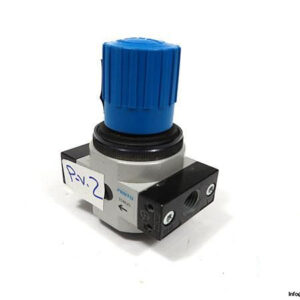

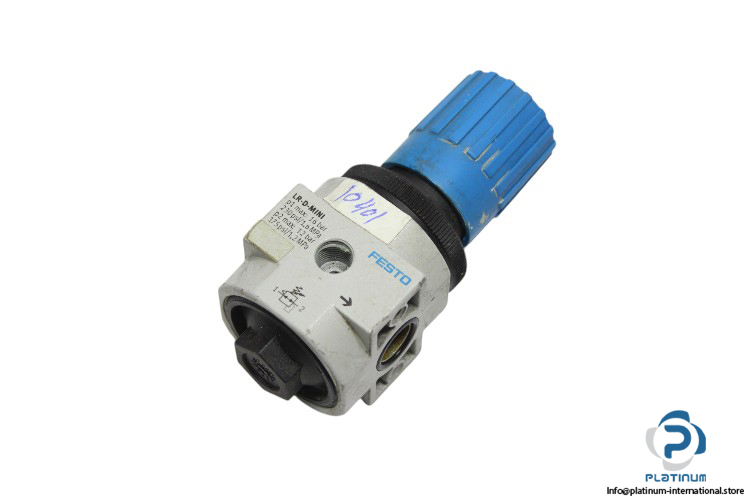

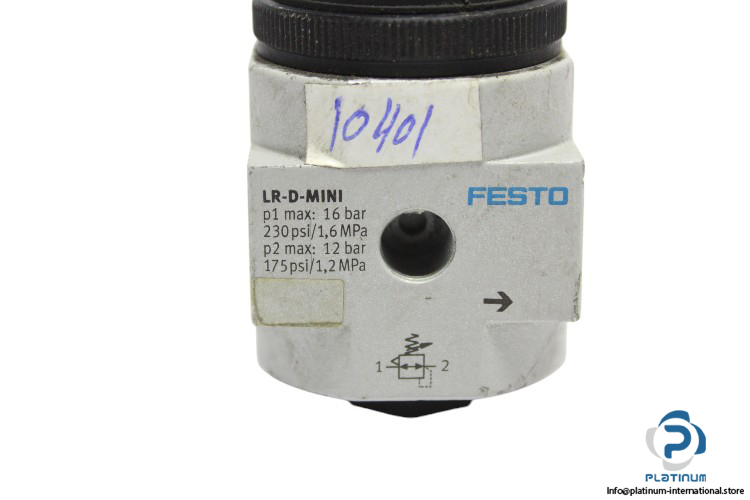

FESTO Pressure Regulator Without Flange LR-D-MINI
The FESTO Pressure Regulator Without Flange LR-D-MINI is designed for precise pressure regulation in various industrial applications. This compact regulator features a pressure regulation range of 0.5 to 12 bar, making it ideal for systems requiring consistent performance in both compressed air and inert gases. With a nominal flow rate of 1500 l/min and a maximum inlet pressure of 16 bar, this unit is perfect for high-performance industrial processes.
Manufacturer: FESTO
Type: Pressure Regulator Without Flange
Model: LR-D-MINI
Part No.: 159625
Technical Specifications
- Series: D
- Size: MINI
- Fluid: Compressed Air, Inert Gases
- Pressure Regulation Range: 0.5 … 12 bar
- P1 Max.: 16 bar / 230 PSI / 1.6 MPa
- P2 Max.: 12 bar / 175 PSI / 1.2 MPa
- Nominal Flow Rate: 1500 l/min
- Port Size: G 1/4
- Temperature: -10 / 60 °C
- Material: Die-Cast Zinc
