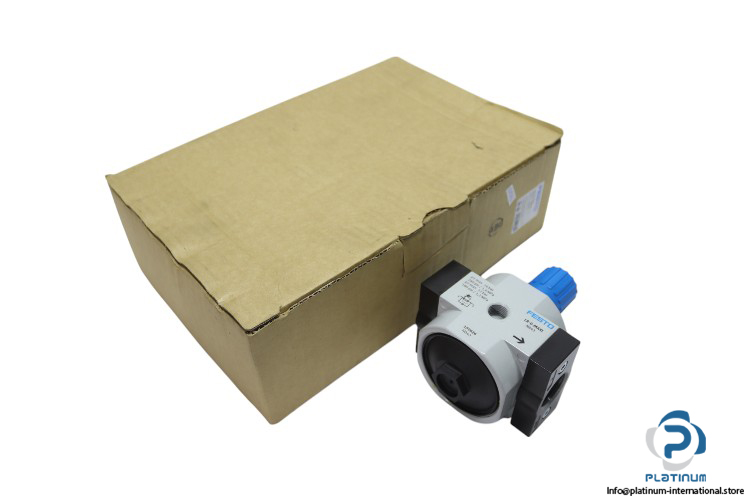

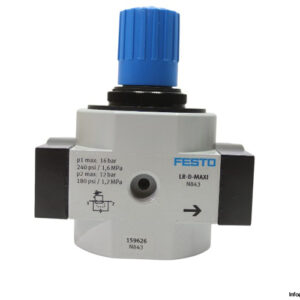

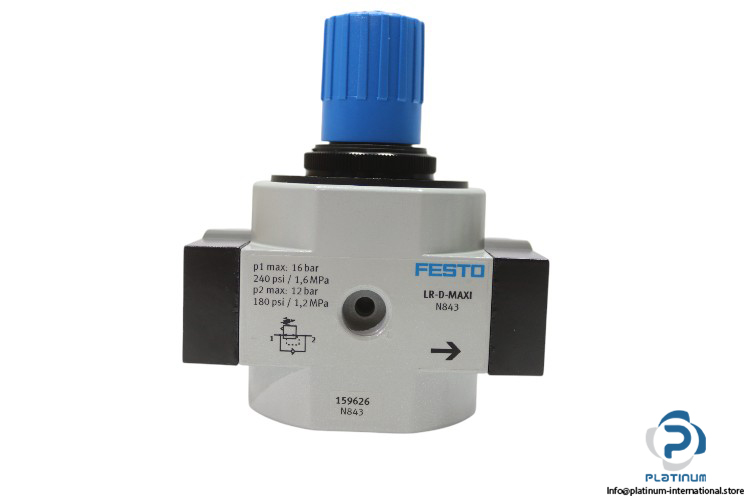

FESTO LR-D-MAXI PRESSURE REGULATOR

The FESTO LR-D-MAXI (also known as LR-3/4-D-MAXI) is a high-performance pressure regulator designed for precise control in compressed air systems. Its pilot-controlled piston design ensures stable pressure regulation even under fluctuating loads.

Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-MAXI
Alternative Model: LR-3/4-D-MAXI
Part No.: 159626

Technical Information

• Fluid: Air
• Design: Pilot-Controlled Piston Control Valve
• Operating Pressure: 0 … 16 bar
• Pressure Regulation Range: 0.5 … 12 bar
• Pressure Hysteresis Max.: 0.4 bar
• Flow Rate: 11000 l/min
• Type of Mounting: Front Panel Mounting, Line Installation, with Accessories
• Port Size: G3/4
• Material: Die-Cast Zinc
• Ambient Temperature: -10 … 60 °C
