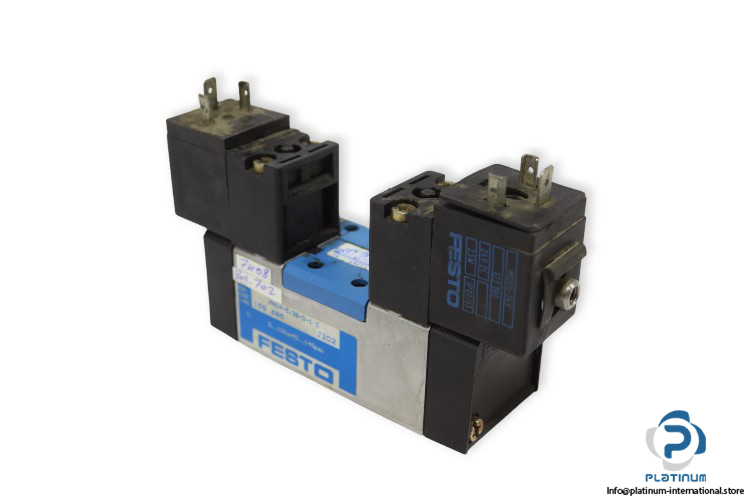

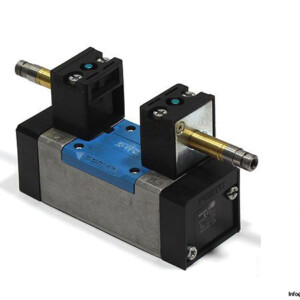

FESTO MN1H-5/3B-D-1-C DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO MN1H-5/3B-D-1-C is a high-performance double solenoid valve featuring a 5/3-way, pressurized function for precise pneumatic control. Designed with a durable piston gate mechanism, this valve operates efficiently under varied industrial conditions. It comes equipped with the FESTO MSN1G-24V solenoid coil, ensuring reliable electrical actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve

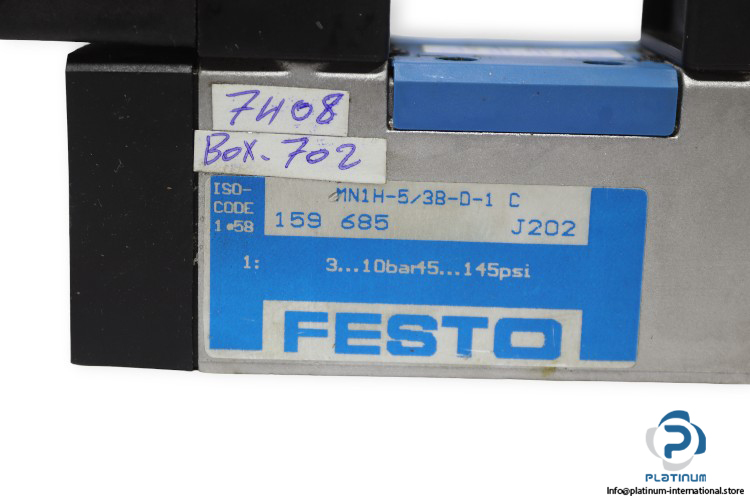

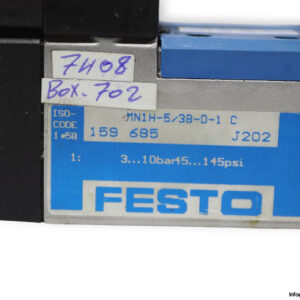

Model: MN1H-5/3B-D-1-C
Part No.: 159685

Technical Information

• Fluid: Air
• Design: Piston Gate Valve

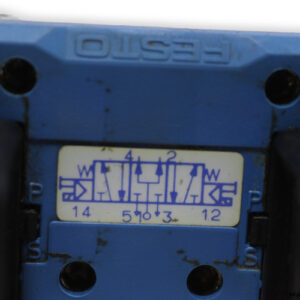

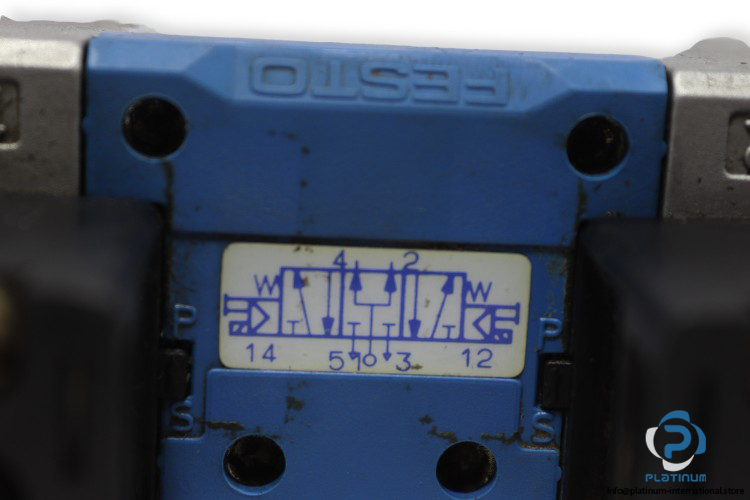

• Function: 5/3-way, Pressurized
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1200 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast Aluminum
• Ambient Temperature: -5 … 50 °C

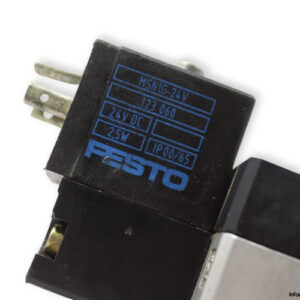

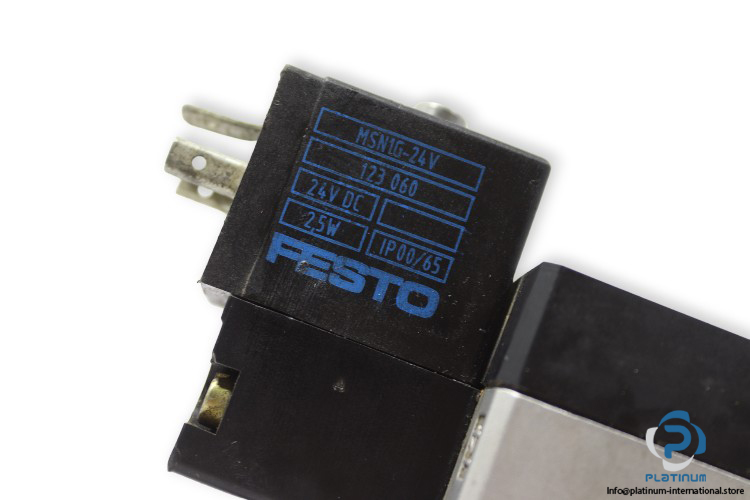

Solenoid Coil Attachment: FESTO MSN1G-24V

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSN1G-24V
Part No.: 123060

Solenoid Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 11 W
• Protection Class: IP00 / IP65
