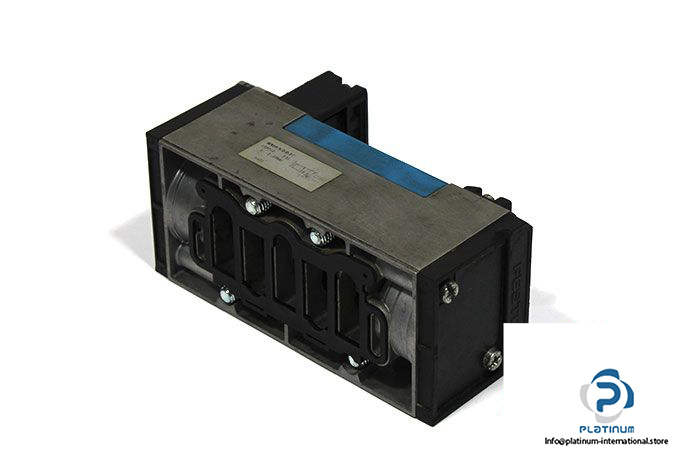

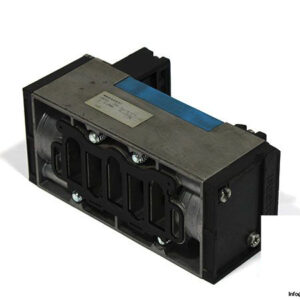

FESTO MN1H-5/2-D-3-C SINGLE SOLENOID VALVE
The FESTO MN1H-5/2-D-3-C is a high-performance single solenoid valve built for demanding pneumatic applications. With a robust die-cast aluminum design, monostable 5/2-way function, and a nominal flow rate of 4500 l/min, this valve delivers reliable switching and efficient air control in industrial systems.
Manufacturer: FESTO
Type: Single Solenoid Valve

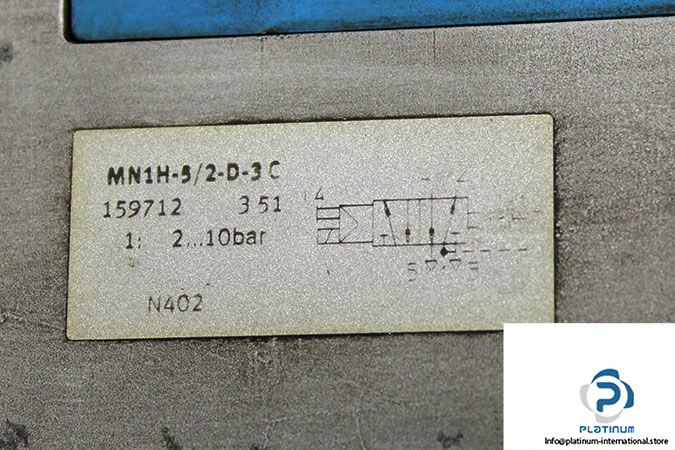

Model: MN1H-5/2-D-3-C
Part No.: 159712
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Valve Function: 5/2-way, monostable
- Type of Actuation: Electrically
- Medium Pressure: 2 / 10 bar
- Nominal Flow Rate: 4500 l/min
- Material: Die-cast Aluminium
- Pneumatic Connection: Sub-base / G1/2
- Ambient Temperature: -5 / 50¯°C
