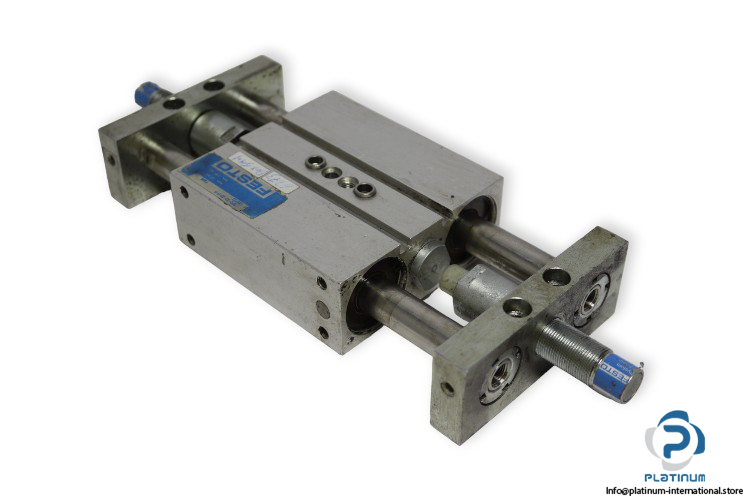

Manufacturer: FESTO
Type: Slide Unit

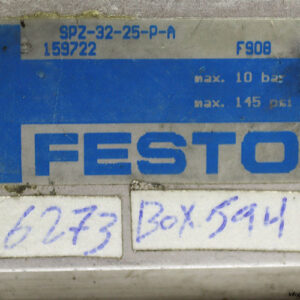

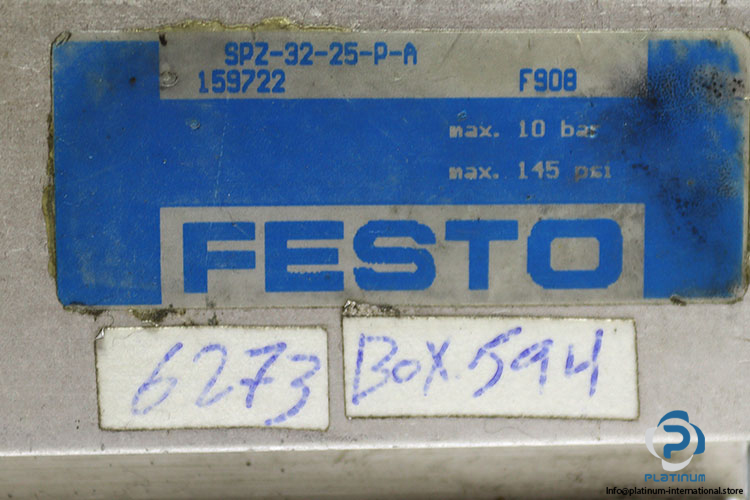

Model: SPZ-32-25-P-A
Part No.: 159722
Successor: 532449

Media: Compressed Air
Stroke: 25 mm
Piston Diameter: 32 mm
Operating Pressure: 1 … 10 bar
Pneumatic Connection: G 1/8
Position Sensing: For proximity sensor
Cushioning: Flexible cushioning rings/plates at both ends
Operation Temperature: -20 … 80°C

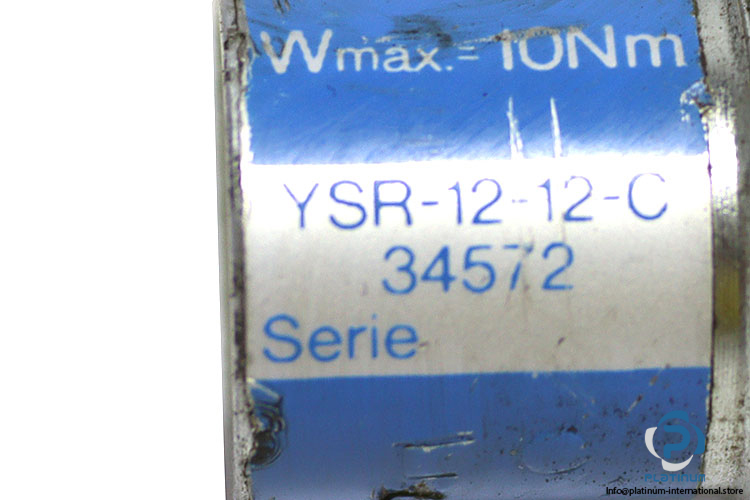

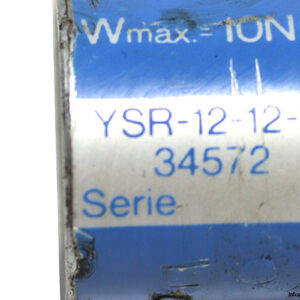

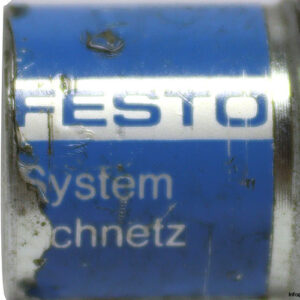

Attachment: FESTO 34572 SHOCK ABSORBER
Manufacturer: FESTO
Type: Shock absorber
Model: YSR-12-12-C
Part No.: 34572

Stroke: 12 mm
Max. energy consumption per stroke: 10 J
Cushioning: Self-adjusting
Mode of operation: Pushing,Single-acting
