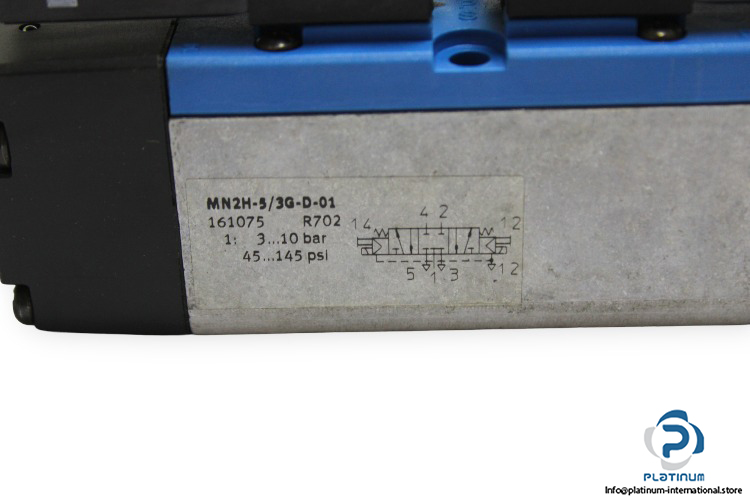

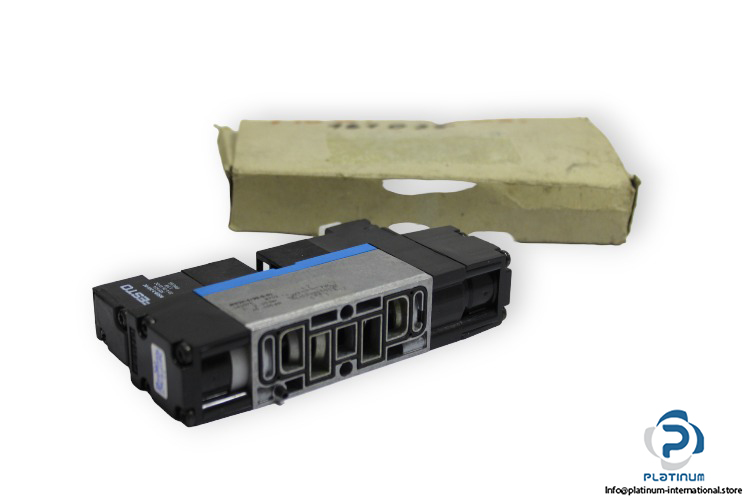

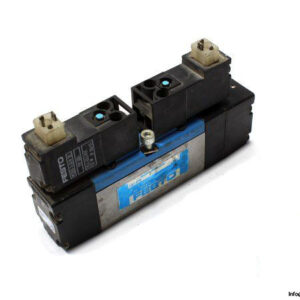

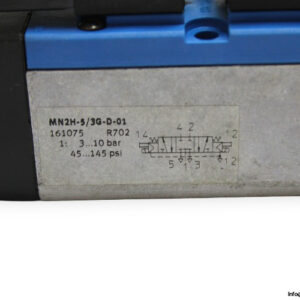

FESTO MN2H-5/3G-D-01 DOUBLE SOLENOID VALVE WITH COIL

The FESTO MN2H-5/3G-D-01 is a high-performance double solenoid valve engineered for precision pneumatic control in industrial automation systems. With a 5/3 closed function, robust die-cast aluminium body, and paired with the reliable FESTO MSEB-3-24V DC solenoid coil, this unit ensures efficient and reliable operation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MN2H-5/3G-D-01
Part No.: 161075

Technical Information

• Fluid: Air
• Function: 5/3 closed
• Type of Actuation: Electrical
• Working Pressure: 3 / 10 bar
• Nominal Flow Rate: 1000 l/min
• Pneumatic Connection: Sub-based
• Material: Aluminium Die-Cast
• Ambient Temperature: -10 / 60 °C

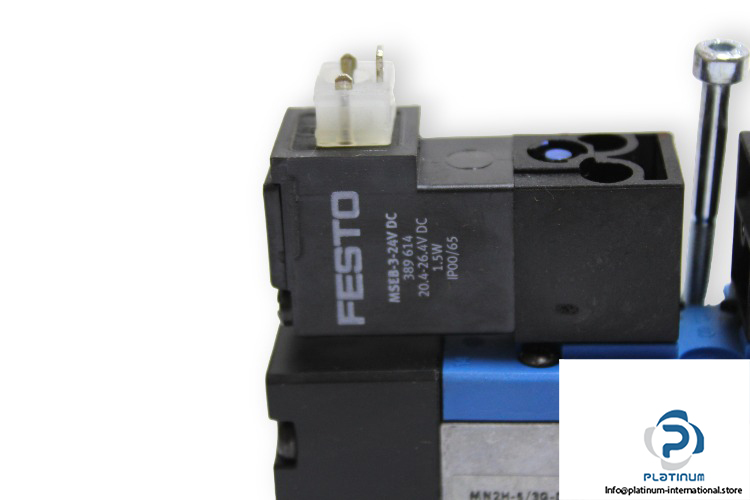

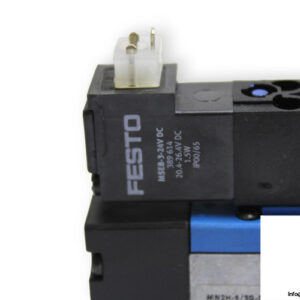

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 389614

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
