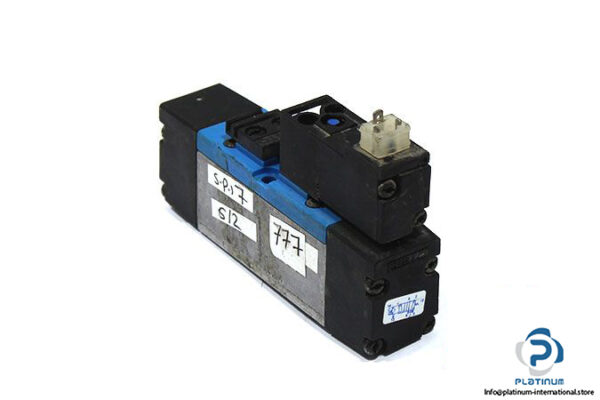

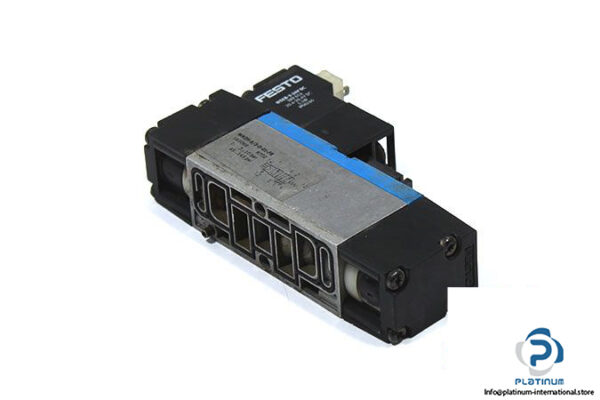

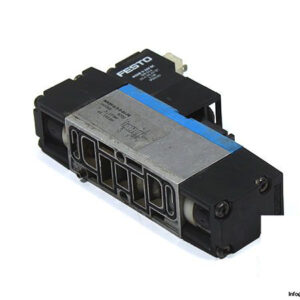

FESTO MN2H-5/2-D-01-FR SINGLE SOLENOID VALVE WITH COIL

The FESTO MN2H-5/2-D-01-FR is a high-performance single solenoid valve engineered for reliable pneumatic control in industrial automation systems. Designed with a piston slide mechanism and robust die-cast aluminium body, it ensures smooth switching, long service life, and compatibility with a wide range of applications. Delivered complete with the FESTO 546256 solenoid coil for efficient 24 V DC operation.

Manufacturer: FESTO
Type: Single Solenoid Valve

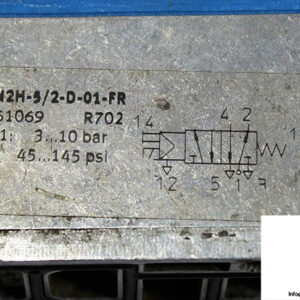

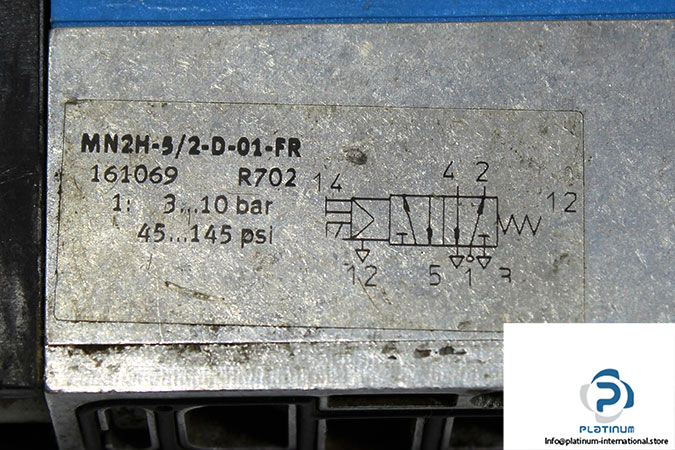

Model: MN2H-5/2-D-01-FR
Part No.: 161069

Technical Information

• Fluid: Air
• Design: Piston Slide
• Function: 5/2 Single Solenoid
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1000 l/min
• Pneumatic Connection: Connection Plate Size 26 mm
• Material: Die-cast Aluminium
• Ambient Temperature: -10 … 50 °C

Solenoid Coil Attachment: FESTO 546256

Manufacturer: FESTO
Type: Solenoid Coil
Model: 546256 / 746809

Solenoid Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.8 W
• Protection Class: IP00 / IP65
