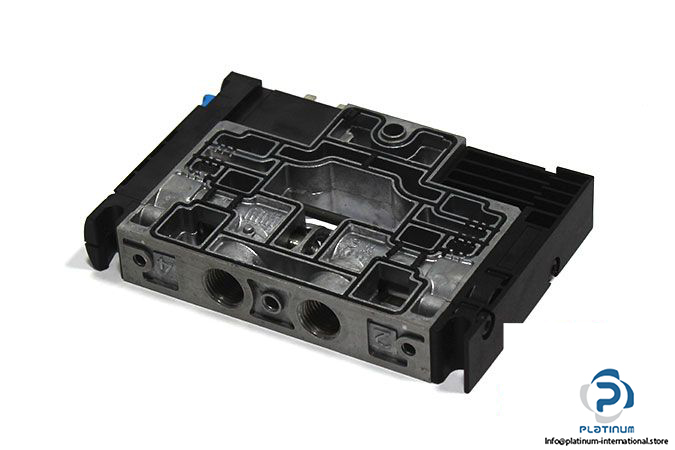

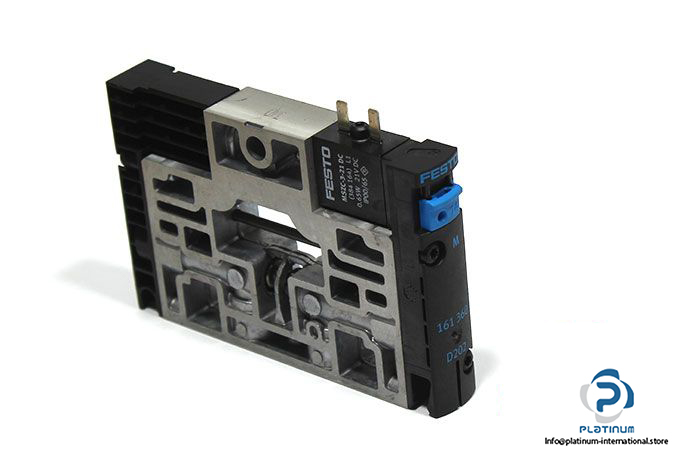

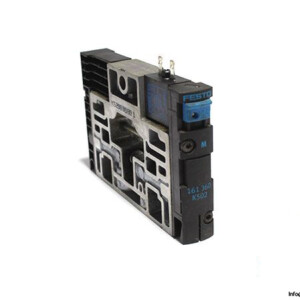

FESTO CPV14-M1H-5LS-1/8 AIR SOLENOID VALVE WITH MSZE-3-21V DC COIL

The FESTO CPV14-M1H-5LS-1/8 is a high-performance 5/2-way monostable air solenoid valve engineered for reliability and efficiency in automated pneumatic systems. Its piston gate valve design and robust aluminum die cast body ensure long service life in demanding environments.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPV14-M1H-5LS-1/8

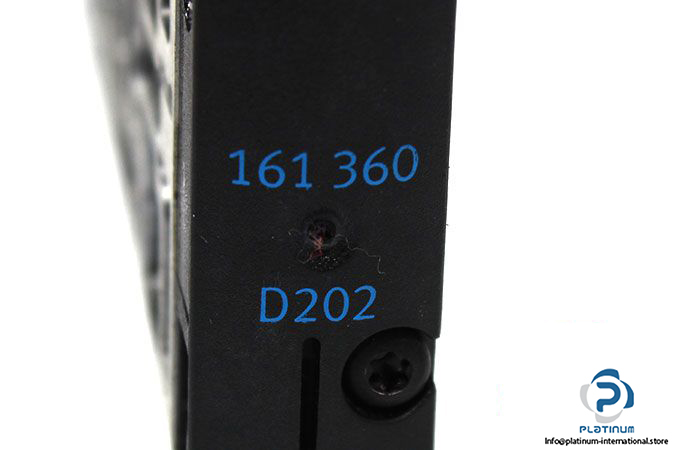

Part No.: 161360

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 800 l/min
• Pneumatic Connection: G1/8
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

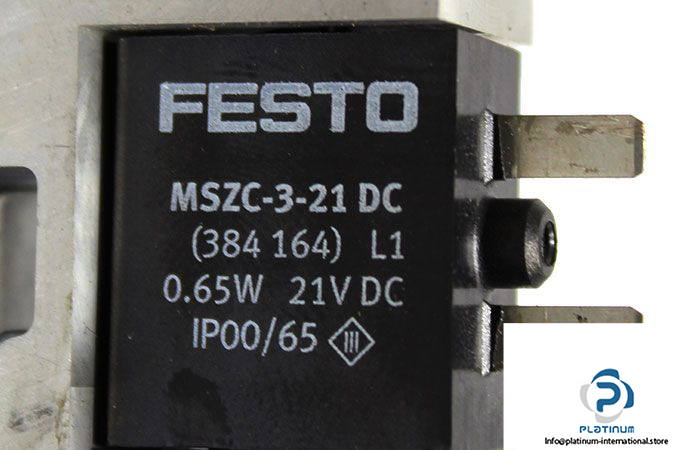

Attachment: FESTO MSZE-3-21V DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-21V DC
Part No.: 125400

Coil Technical Information

• Supply Voltage: 18 … 26.4 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65
