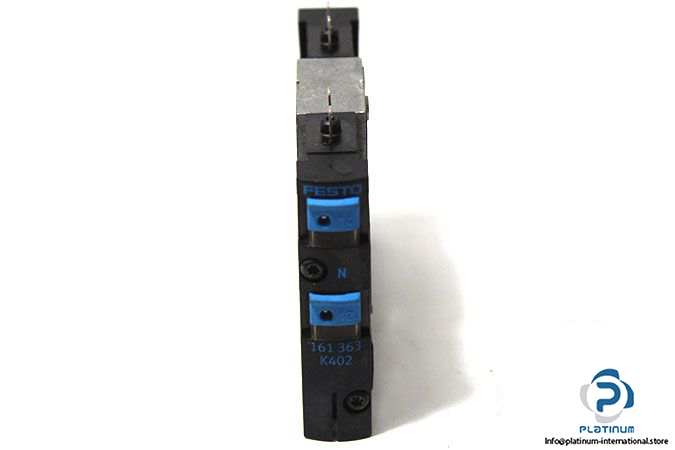

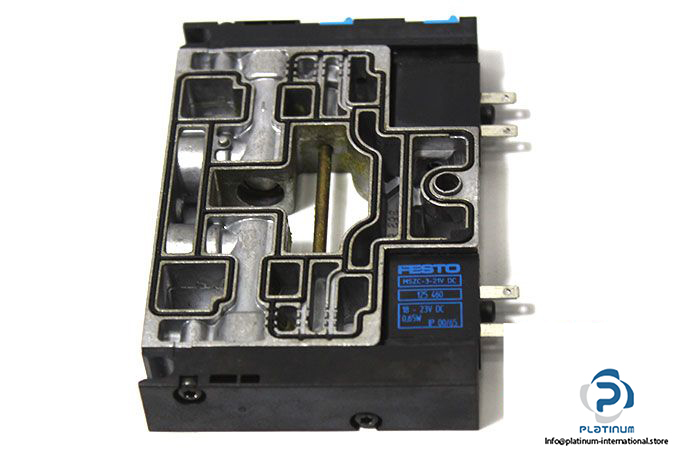

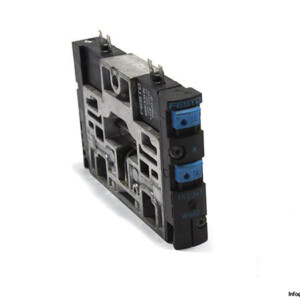

FESTO CPV14-M1H-2X3-OLS-1/8 AIR SOLENOID VALVE WITH COIL

The FESTO CPV14-M1H-2X3-OLS-1/8 is a high-performance air solenoid valve engineered for precision flow control in industrial automation systems. Featuring a piston gate design and 2×3/2-way monostable function, it operates electrically with efficient air handling capabilities.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPV14-M1H-2X3-OLS-1/8
Part No.: 161363

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 2×3/2-way, open, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 800 l/min
• Pneumatic Connection: G1/8
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

Attachment: FESTO MSZE-3-21 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-21 DC
Part No.: 384164

Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP65
