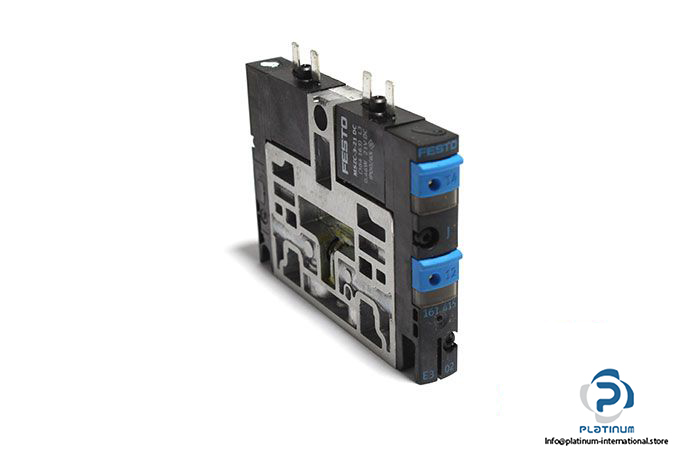

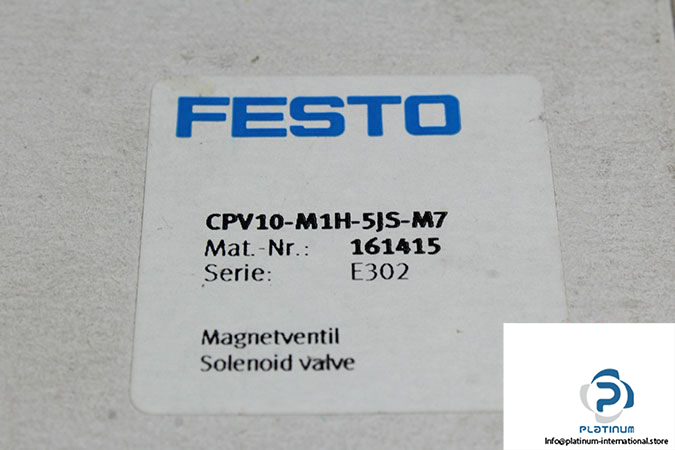

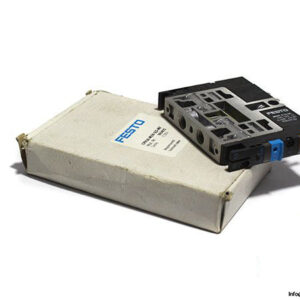

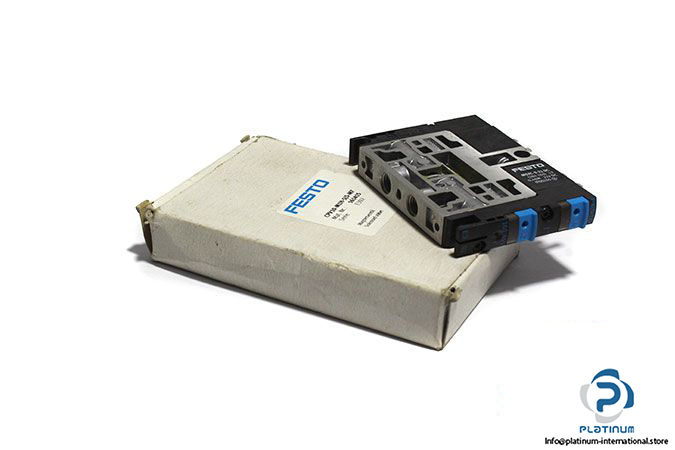

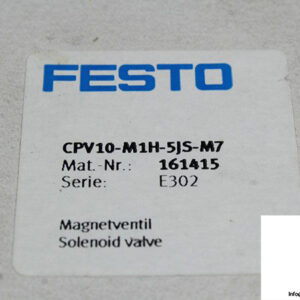

FESTO CPV10-M1H-5JS-M7 DOUBLE SOLENOID VALVE WITH MSZE-3-21 DC COIL

The FESTO CPV10-M1H-5JS-M7 is a high-performance double solenoid valve featuring a bistable 5/2 function and piston gate valve design. Built with a durable aluminum die-cast body, this unit delivers precise and efficient air flow control in industrial pneumatic systems. It includes the MSZE-3-21 DC solenoid coil for enhanced operational reliability.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPV10-M1H-5JS-M7
Part No.: 161415

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 400 l/min
• Pneumatic Connection: M7
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

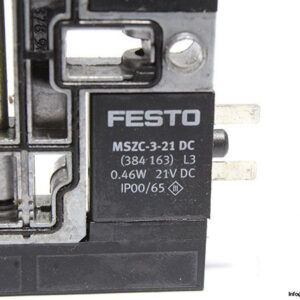

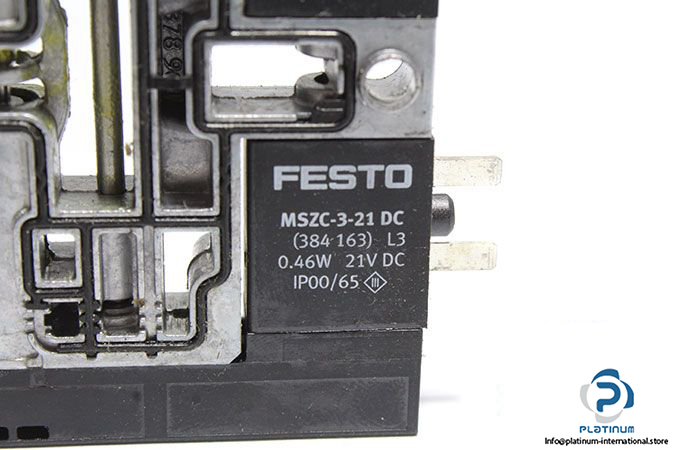

Solenoid Coil Attachment: FESTO MSZE-3-21 DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-21 DC
Part No.: 384163

Solenoid Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.46 W
• Protection Class: IP65
