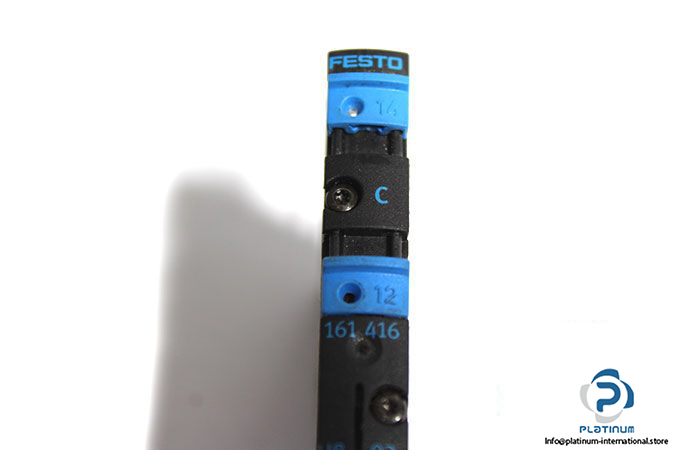

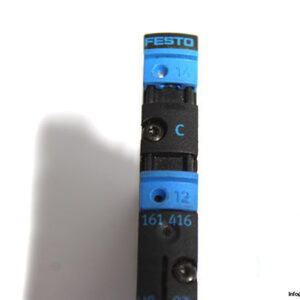

FESTO CPV10-M1H-2X3-GLS-M7 AIR SOLENOID VALVE WITH SOLENOID COIL

The FESTO CPV10-M1H-2X3-GLS-M7 is a high-performance air solenoid valve engineered for efficient and precise pneumatic control. This monostable 2×3/2-way valve is electrically actuated and designed with a durable piston gate structure, ideal for compact and modular automation systems. It includes a FESTO MSZE-3-21 DC solenoid coil for optimal switching control under demanding industrial environments.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPV10-M1H-2X3-GLS-M7
Part No.: 161416

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 2×3/2-way, monostable, closed
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 400 l/min
• Pneumatic Connection: M7
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

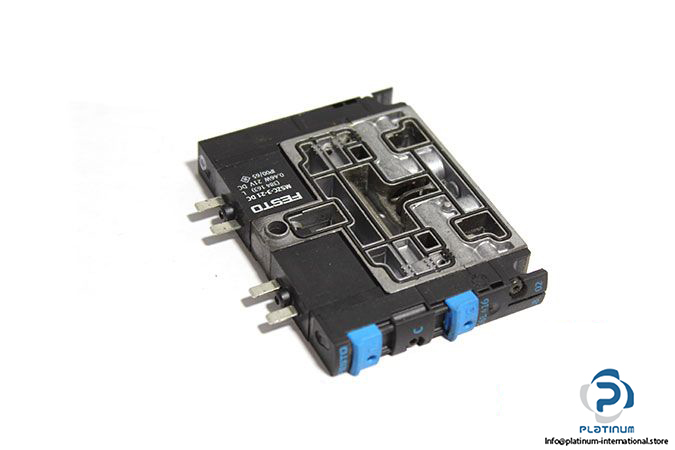

Attachment: FESTO MSZE-3-21 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-21 DC
Part No.: 384163

Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.46 W
• Protection Class: IP65
