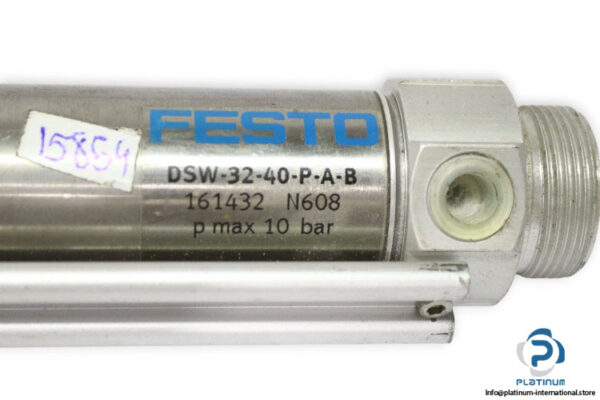

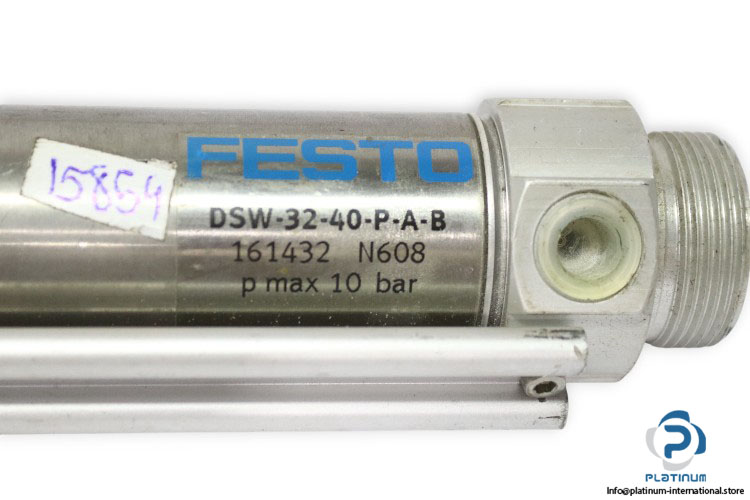

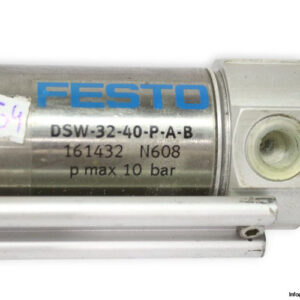

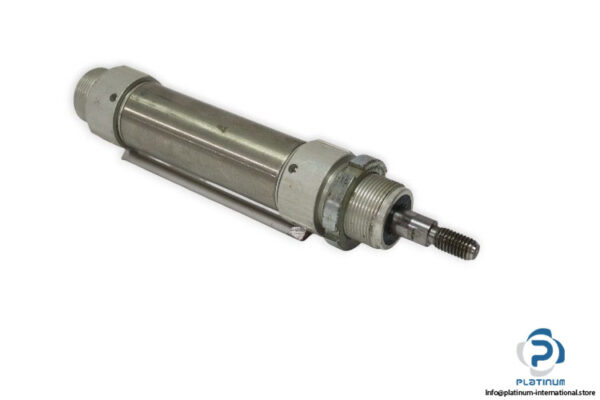

Festo DSW-32-40-P-A-B Round Cylinder

The Festo DSW-32-40-P-A-B is a high-performance round cylinder from the DSW series, designed for industrial pneumatic applications requiring precision, durability, and compact form. With double-acting piston action, flexible cushioning, and compatibility with proximity sensors, it ensures reliable operation in automation systems.

Manufacturer: Festo
Type: Round Cylinder
Model: DSW-32-40-P-A-B
Part No.: 161432
Ref. Code: N608
Series: DSW

Technical Information

• Stroke Length: 40 mm
• Piston Diameter: 32 mm
• Piston Rod Thread: 12 mm
• Pneumatic Connection: G1/8
• Cushioning: Flexible cushioning rings or plates at both ends (P)
• Operating Medium: Dried compressed air
• Max. Operating Pressure: 10 bar
• Shape: Circular
• Position Detection: With proximity sensor
• Variants: Single-ended piston rod
• Piston Action: Double-acting
• Material Cover: Wrought aluminum alloy
• Material Seals: TPE-U(PU), NBR
• Material Piston Rod: High-alloy steel
• Material Cylinder Barrel: High-alloy steel
• Ambient Temperature: -20 to 80 °C
