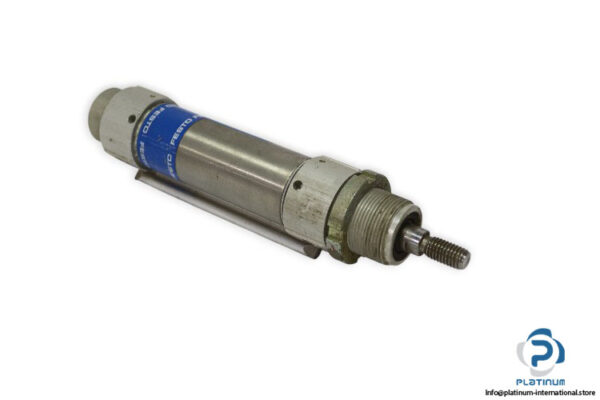

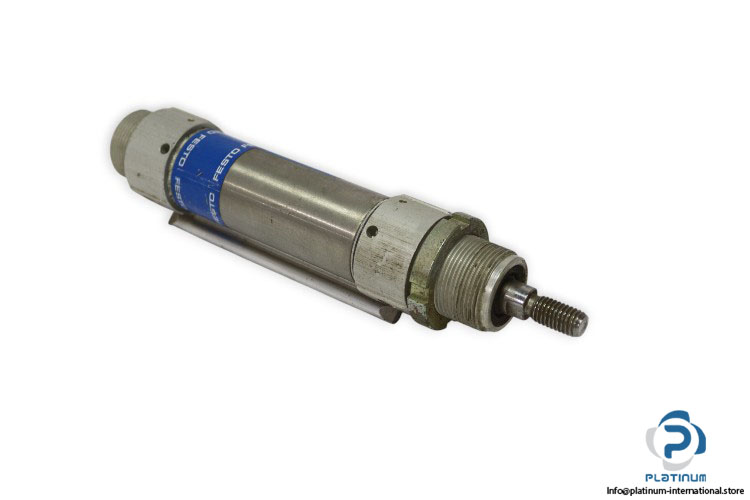

Festo DSW-32-40PPVA B Round Cylinder

The Festo DSW-32-40PPVA B is a robust double-acting round cylinder designed for precise linear motion in industrial pneumatic applications. With a 40 mm stroke length, 32 mm piston diameter, and adjustable pneumatic cushioning, it ensures reliable performance under demanding conditions.

Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder

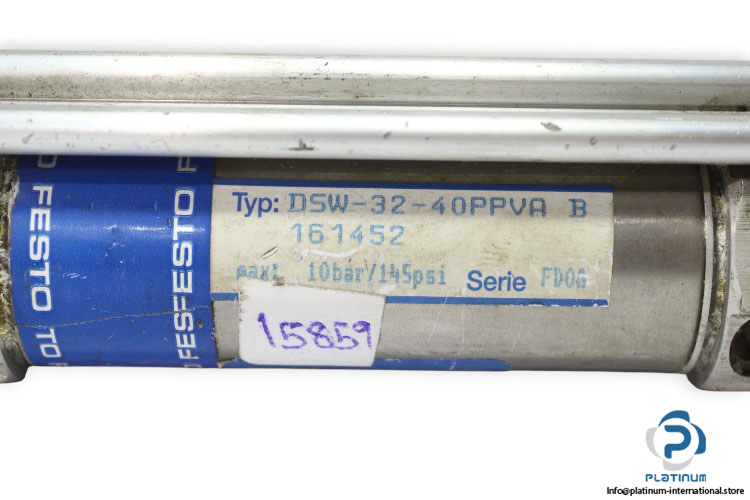

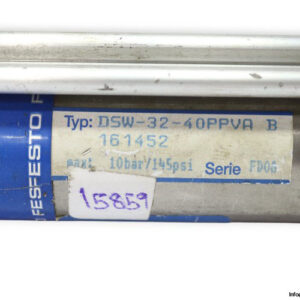

Model: DSW-32-40PPVA B
Part No.: 161452
Series: DSW / FD0G

Technical Information

• Stroke Length: 40 mm
• Piston Diameter: 32 mm
• Piston Rod Thread: 12 mm
• Pneumatic Connection: G1/8
• Operating Medium: Dried Compressed Air
• Cushioning: Pneumatic cushioning, adjustable at both ends (PPV)
• Max. Operating Pressure: 10 bar
• Shape: Circular
• Piston Action: Double-acting
• Material Cover: Wrought aluminum alloy
• Material Seals: NBR, TPE-U(PU)
• Material Piston Rod: High-alloy steel
• Material Cylinder Barrel: High-alloy steel
• Ambient Temperature: -20 to 80 °C
