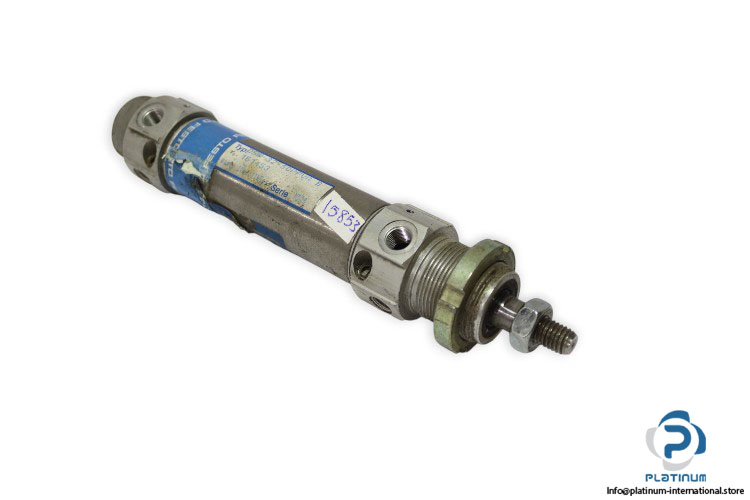

Festo DSW-32-50-PPVA B Round Cylinder
The Festo DSW-32-50-PPVA B is a robust double-acting round cylinder designed for precision pneumatic applications. With a 50 mm stroke length, 32 mm piston diameter, and adjustable cushioning, it ensures reliable operation in demanding automation environments. Built with high-quality materials, it offers long service life and compatibility with proximity sensors for accurate position detection.
Manufacturer: Festo
Type: Round Cylinder

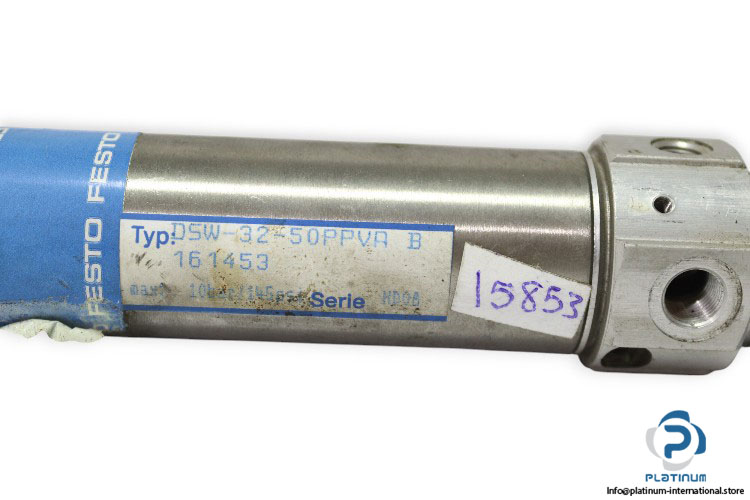

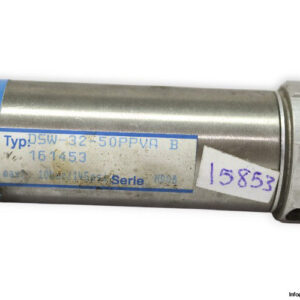

Model: DSW-32-50-PPVA B
Part No.: 161453
Ref. code: MD08
Series: DSW
Technical Information
- Stroke Length: 50 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: 12 mm
- Pneumatic Connection: G1/8
- Cushioning: Pneumatic cushioning, adjustable at both ends (PPV)
- Operating Medium: Dried compressed air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Position Detection: With proximity sensor
- Variants: Single-ended piston rod
- Piston Action: Double-acting
- Material Cover: Wrought aluminum alloy
- Material Seals: TPE-U(PU), NBR
- Material Piston Rod: High-alloy steel
- Material Cylinder Barrel: High-alloy steel
- Ambient Temperature: -20 to 80 °C
