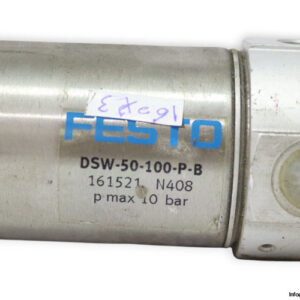

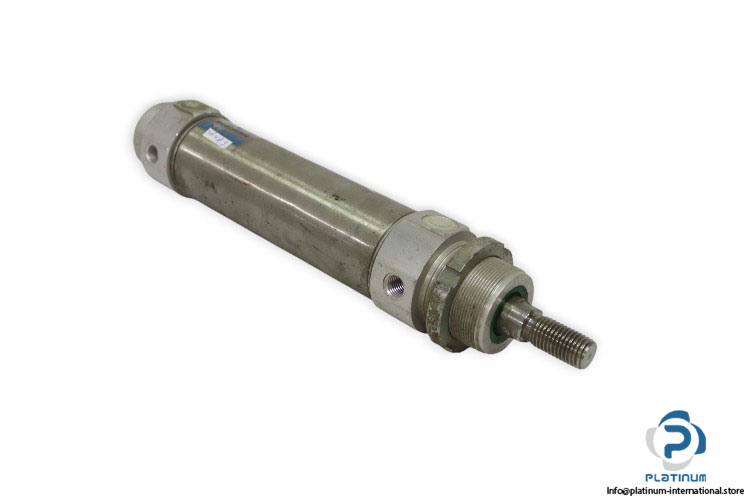

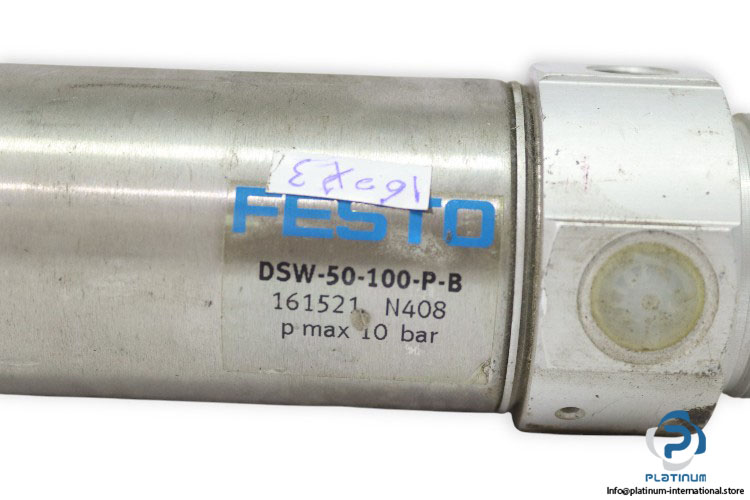

Festo DSW-50-100-P-B Round Cylinder
The Festo DSW-50-100-P-B is a high-performance pneumatic round cylinder from the DSW series, engineered for durability and efficiency in industrial automation. With a 50 mm bore and 100 mm stroke, this double-acting cylinder delivers reliable operation using compressed air at pressures up to 10 bar. Built with premium materials including aluminum alloy, NBR seals, and high-alloy steel components, it ensures robust performance under demanding conditions.
- Manufacturer: Festo
- Type: Round Cylinder
- Model: DSW-50-100-P-B
- Part No.: 161521
- Code: N408
- Series: DSW
Technical Information
- Media: Compressed Air
- Pressure Rating: Max. 10 bar
- Bore Size: 50 mm
- Stroke Length: 100 mm
- Bore x Stroke: 50 x 100 mm
- Mode of Operation: Double
- Shape: Circular
- Cushioning: Flexible cushioning rings or plates at both ends (P)
- Ambient Temperature: -20 °C to 80 °C
- Material Cover: Wrought aluminum alloy
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy steel
- Material Cylinder Barrel: High-alloy steel
- Connection: G1/4
