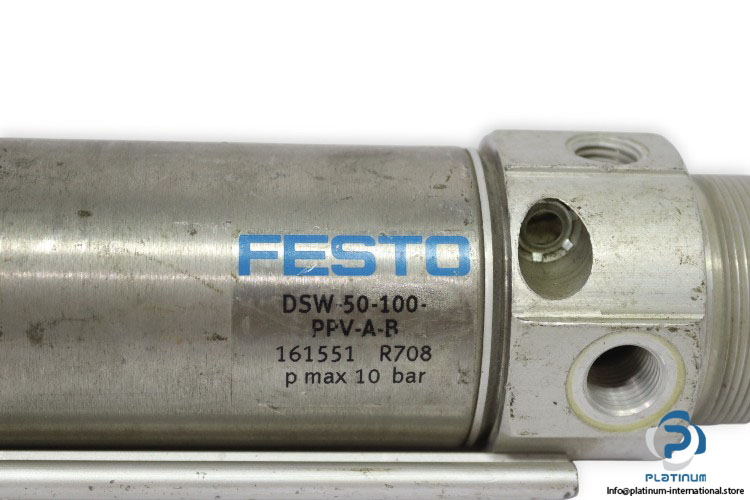

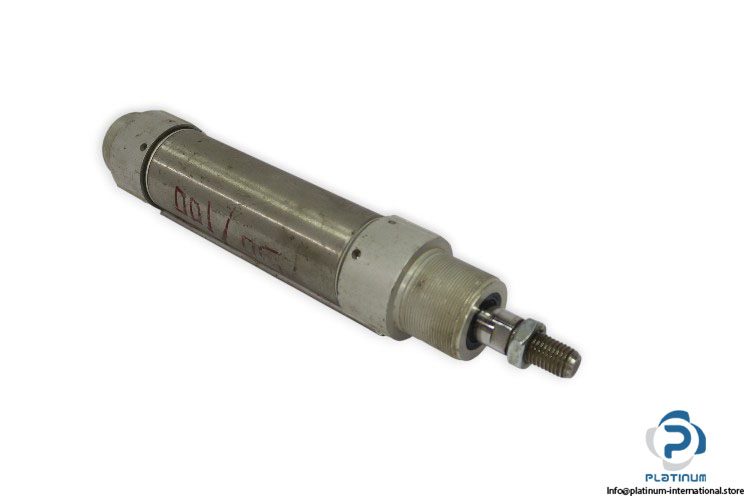

Festo Round Cylinder DSW-50-100-PPV-A-B
The Festo DSW-50-100-PPV-A-B is a high-quality round cylinder engineered for reliable performance in pneumatic systems. With a 50 mm bore size and 100 mm stroke length, it delivers precise double-acting operation for industrial applications. Designed with adjustable pneumatic cushioning at both ends, this cylinder ensures smooth motion and durability under demanding conditions.
- Manufacturer: Festo
- Type: Round Cylinder
- Model: DSW-50-100-PPV-A-B
- Part No.: 161551
- Series: DSW
- Code: R708
Technical Information
- Media: Compressed Air
- Pressure Rating: Max. 10 bar
- Bore Size: 50 mm
- Stroke Length: 100 mm
- Bore x Stroke: 50×100 mm
- Cushioning: Pneumatic cushioning, adjustable at both ends (PPV)
- Variants: Single-ended piston rod
- Mode of Operation: Double-acting
- Shape: Circular
- Ambient Temperature: -20 °C to 80 °C
- Material Cover: Wrought aluminum alloy
- Material Seals: TPE-U(PU)
- Material Piston Rod: High-alloy steel
- Material Cylinder Barrel: High-alloy steel
- Connection: G1/4
