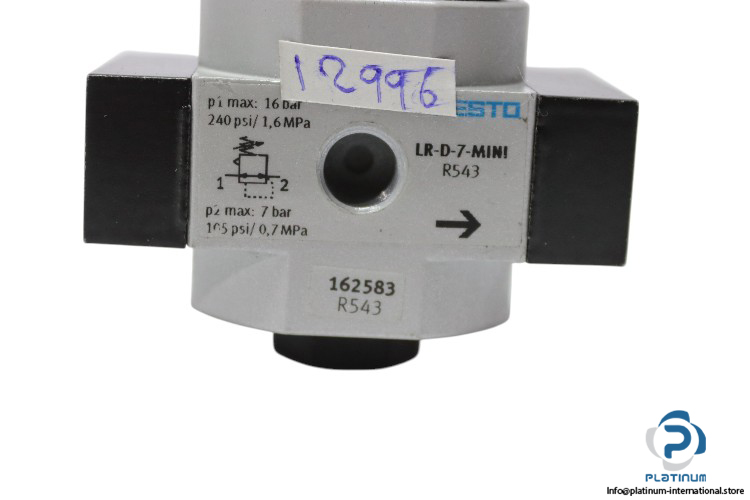

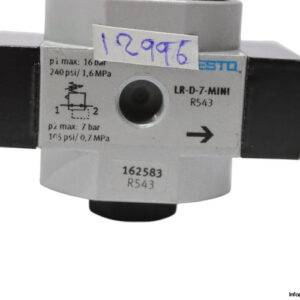

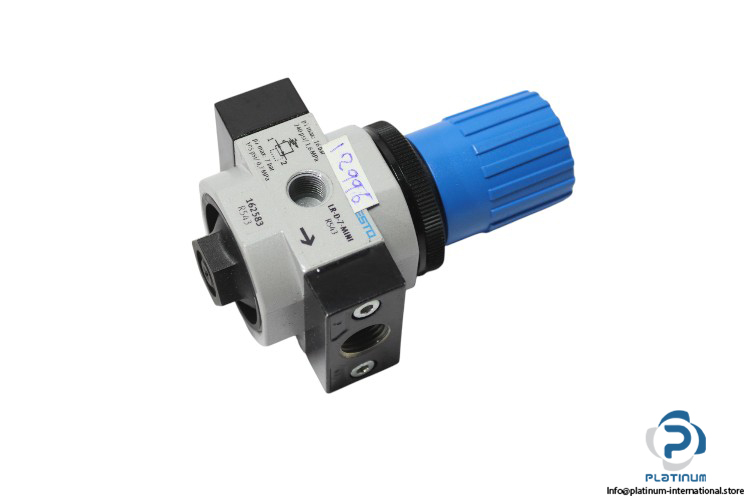

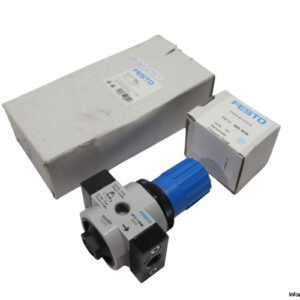

FESTO LR-D-7-MINI Pressure Regulator
The FESTO LRD7MINI Pressure Regulator is a compact and reliable solution designed for regulating pressure in compressed air or inert gas systems. Made of durable die-cast zinc, it offers efficient and precise control with a wide pressure regulation range.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-7-MINI
Part No.: 162583
Technical Information:
- Size: MINI
- Fluid: Compressed Air / Inert Gas
- Pressure Regulation Range: 0.5 … 7 bar
- Operating Pressure Max.: 16 bar
- P1 Max.: 16 bar / 240 PSI / 1.6 MPa
- P2 Max.: 7 bar / 105 PSI / 0.7 MPa
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G 1/4
- Material: Die-Cast Zinc
- Ambient Temperature: -10 … 60 °C
