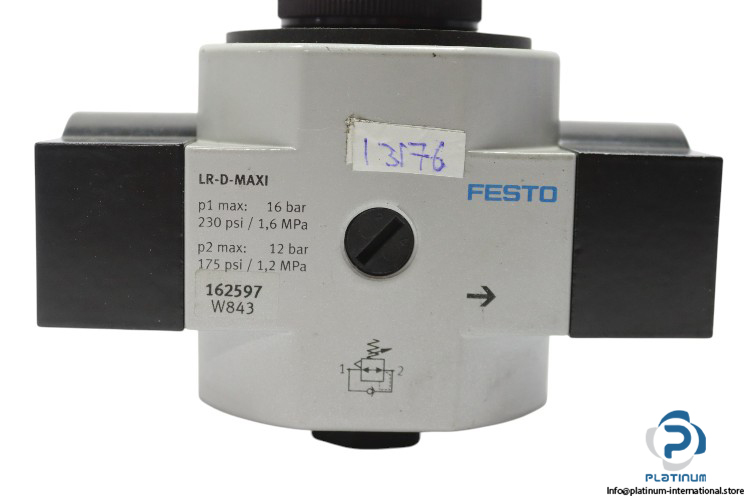

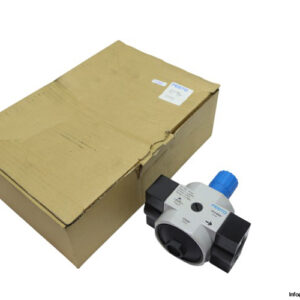

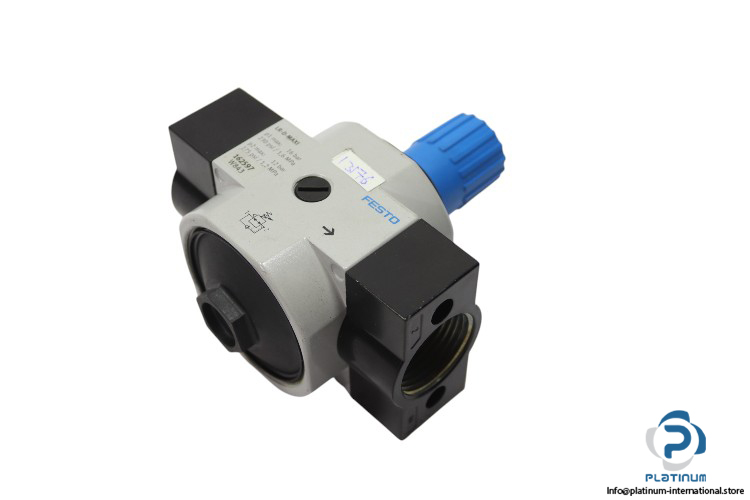

FESTO LR-D-MAXI PRESSURE REGULATOR

The FESTO LRDMAXI Pressure Regulator is designed for precise and reliable regulation of compressed air and inert gases in industrial pneumatic systems. Built with robust materials and featuring a high flow rate and wide pressure range, it ensures consistent performance under demanding conditions.

Manufacturer: FESTO

Type: Pressure Regulator

Model: LR-D-MAXI

Alternative Model: LR-1-D-O-MAXI

Part No.: 162597

Technical Information

Size: MAXI

Fluid: Compressed Air / Inert Gas

Pressure Regulation Range: 0.5 … 12 bar

Operating Pressure Max.: 16 bar

P1 Max.: 16 bar / 240 PSI / 1.6 MPa

P2 Max.: 12 bar / 180 PSI / 1.2 MPa

Nominal Flow Rate: 1500 l/min

Pneumatic Connection: G 1

Material: Die-Cast Zinc

Ambient Temperature: -10 … 60 °C
