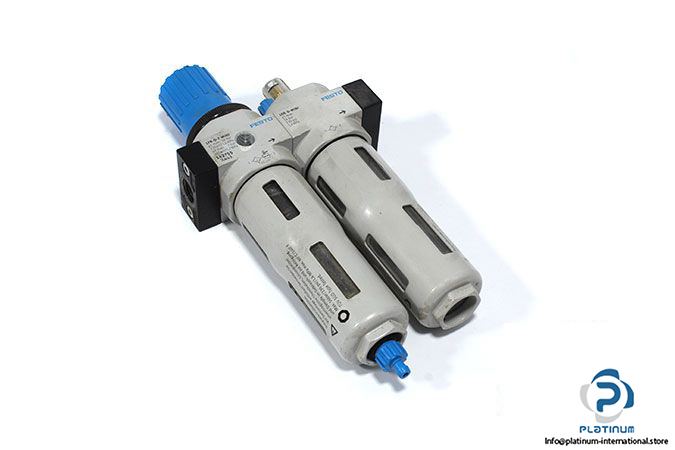

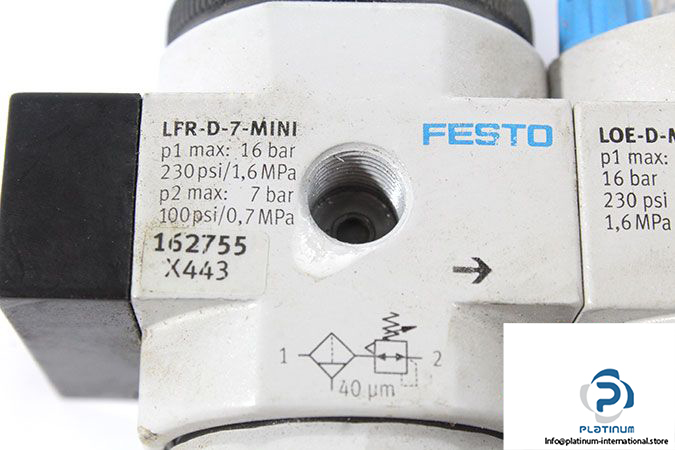

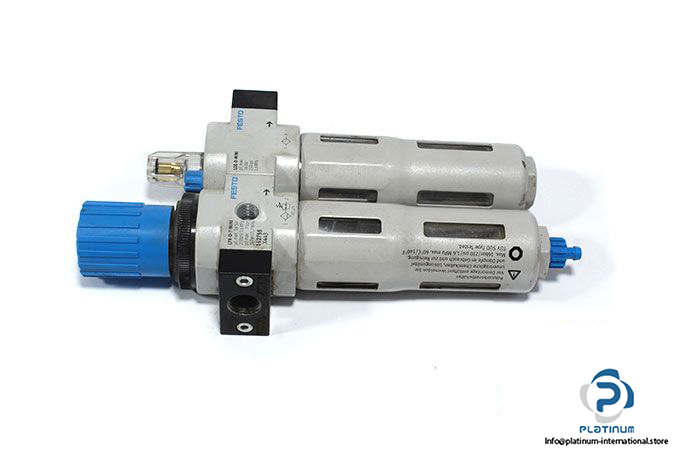

FESTO LFR-D-7-MINI FILTER REGULATOR WITH LOE-D-MINI LUBRICATOR

The FESTO LFR-D-7-MINI is a compact and reliable filter regulator designed for efficient air preparation in pneumatic systems. This unit regulates pressure with precision while removing contaminants from compressed air or neutral gases. It comes with a rotary knob actuator lock and is constructed from durable die-cast zinc. Included with the unit is the FESTO LOE-D-MINI lubricator, ensuring optimal downstream lubrication performance.

Manufacturer: FESTO

Type: Filter Regulator

Model: LFR-D-7-MINI

Part No.: 162755

Size: MINI

Media: Compressed Air, Neutral Gases

Pressure Regulation Range: 0.5 / 7 bar

Operating Pressure: 1 / 16 bar

Nominal Flow Rate: 1300 l/min

Actuator Lock: Rotary Knob with Detent

Material: Die-Cast Zinc

Pneumatic Connection: G 1/4

Temperature: -10 / 60 °C

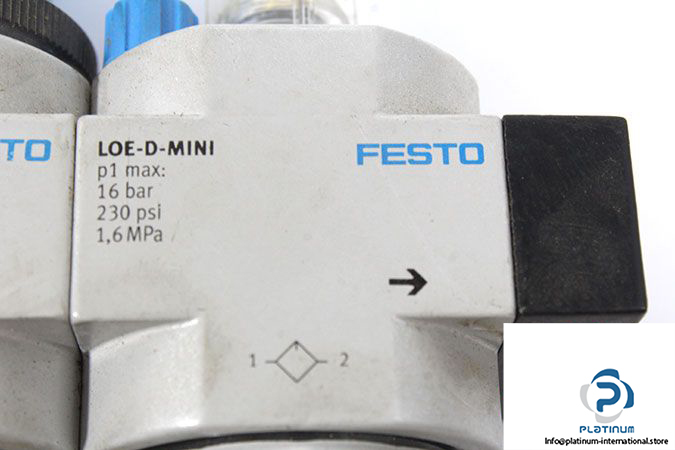

Attachment: FESTO LOE-D-MINI Lubricator

Manufacturer: FESTO

Type: Lubricator

Model: LOE-D-MINI

Part No.: 192575

Media: Compressed Air

Pressure Max.: 10 bar / 230 PSI / 1.6 MPa

Flow Rate: 3 l/m

Temperature: -10 / 60 °C
