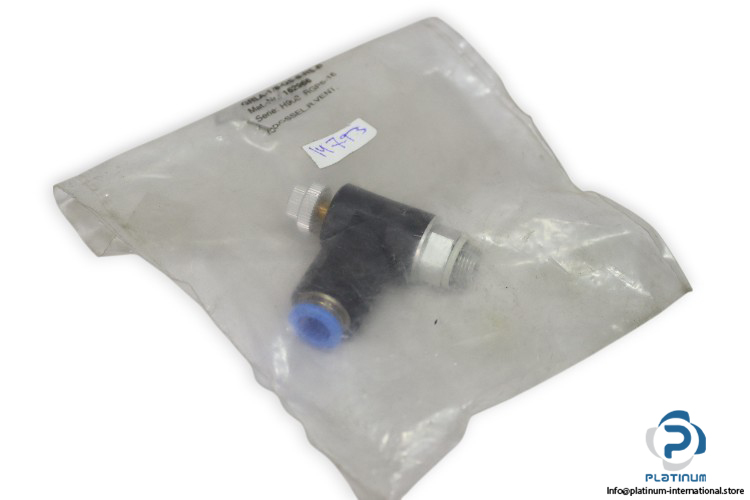

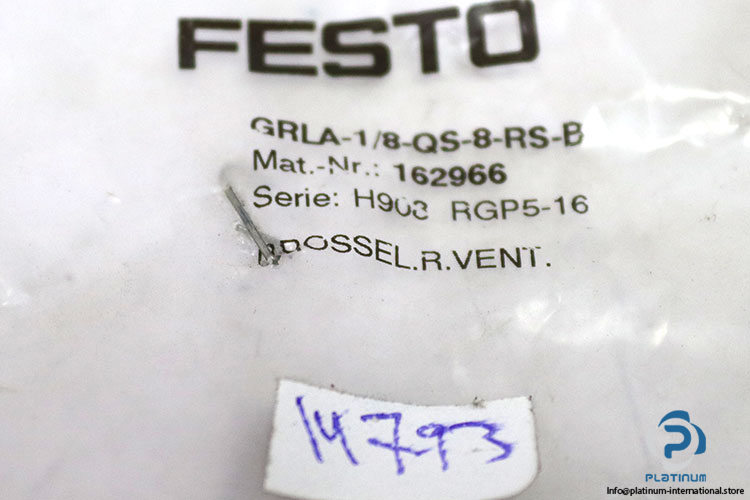

FESTO GRLA-1/8-QS-8-RS-B ONE-WAY FLOW CONTROL VALVE
High-performance one-way flow control valve from Festo, ideal for precise exhaust air regulation in pneumatic systems. This compact and durable unit is engineered for reliability, efficiency, and compatibility with various industrial applications.
- Manufacturer: Festo
- Type: One-way Flow Control Valve
- Model: GRLA-1/8-QS-8-RS-B
- Part No.: 162966
- Series: H908 RGP5-16
Technical Information
- Valve Function: One-way flow control for exhaust air
- Pneumatic Connection Port 1: QS-8
- Pneumatic Connection Port 2: G1/8
- Type of Actuation: Manual
- Adjusting Element: Knurled screw
- Mounting Type: Threaded
- Standard Nominal Flow Rate (Flow Control Direction): 650 l/min
- Standard Nominal Flow Rate (Non-return Direction): 600 to 750 l/min
- Ambient Temperature: -10 to 60 °C
- Operating Pressure (Full Temp Range): 0.2 to 10 bar
- Operating Medium: Compressed air
- Medium Temperature: -10 to 60 °C
Material Composition
- Threaded Plug: Wrought Aluminum Alloy
- Seals: NBR, TPE-U(PU)
- Release Ring: POM
- Knurled Head: Wrought Aluminum Alloy
- Adjusting Screw: Brass
- Swivel Fitting: PBT-reinforced
