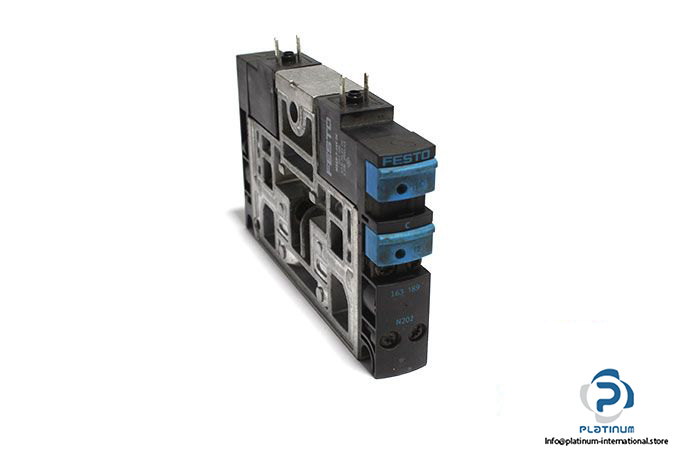

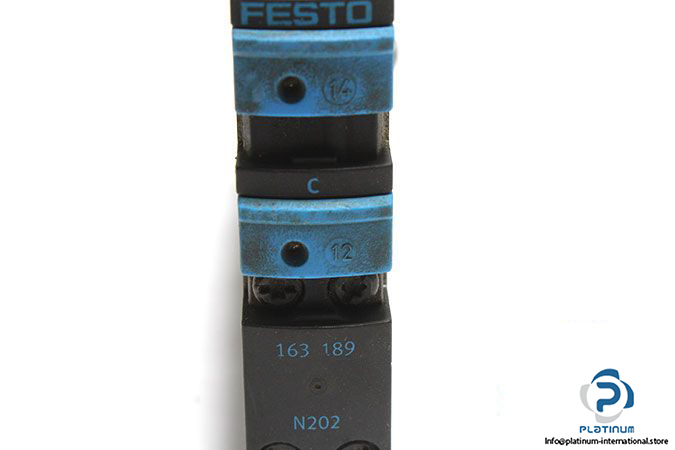

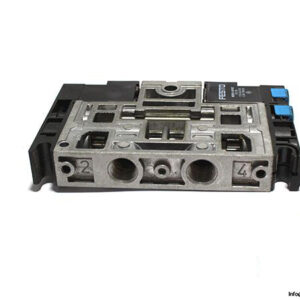

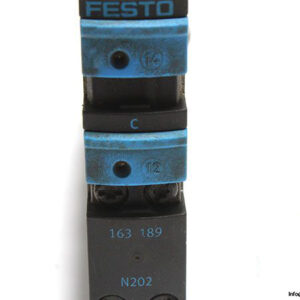

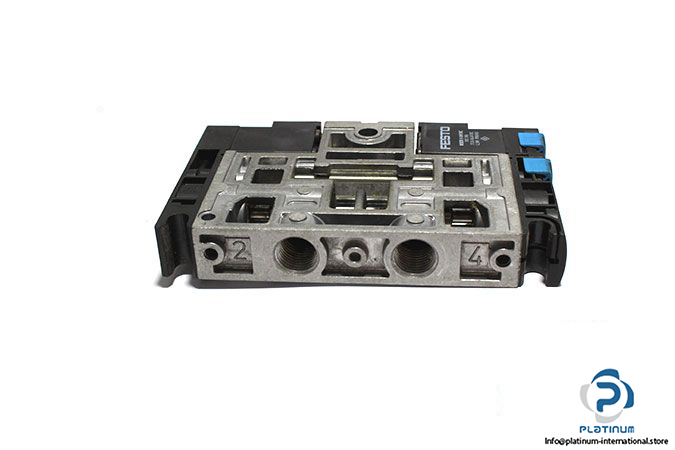

FESTO CPV18-M1H-2X3-GLS-1/4 AIR SOLENOID VALVE WITH COIL

The FESTO CPV18-M1H-2X3-GLS-1/4 is a high-performance air solenoid valve engineered for fast response and durable control in pneumatic systems. Featuring a monostable 2×3/2-way function with a piston gate design, this valve is ideal for automated processes requiring precision and reliability. Includes the FESTO MSEB-3-24V DC solenoid coil with IP65 protection.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPV18-M1H-2X3-GLS-1/4
Part No.: 163189

Valve Technical Specifications

• Fluid: Air
• Design: Piston gate valve
• Function: 2×3/2-way, monostable, closed
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 1600 l/min
• Pneumatic Connection: G1/4
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

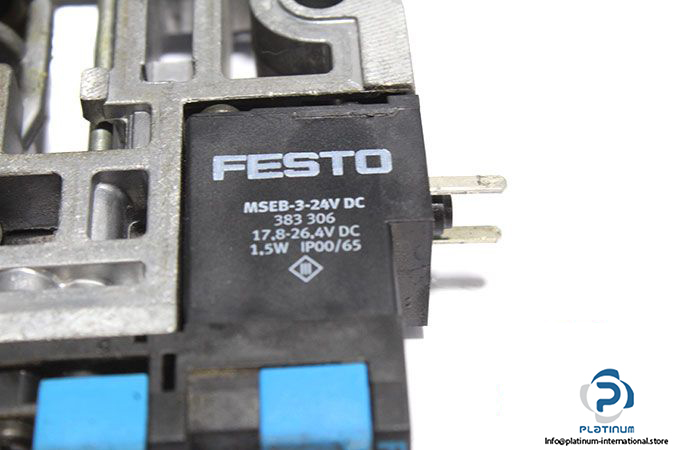

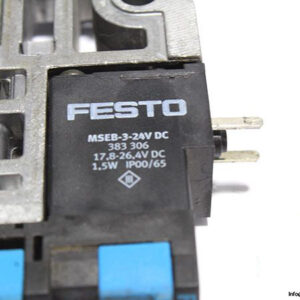

Included Attachment: FESTO MSEB-3-24V DC Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 383306

Coil Technical Specifications

• Supply Voltage: 24 V DC
• Power Consumption: 1.5 W
• Protection Class: IP65
