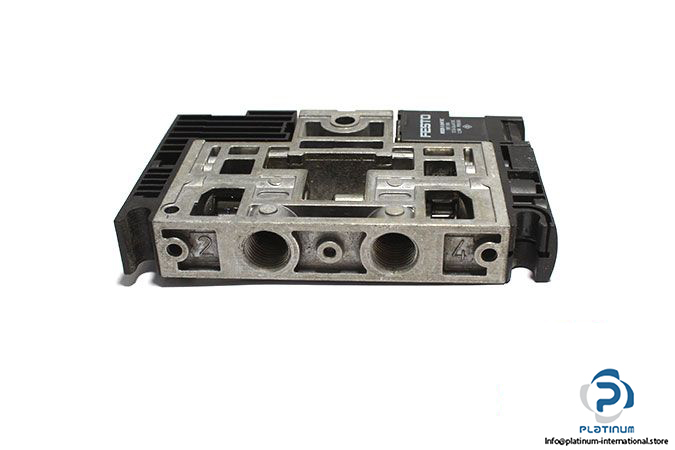

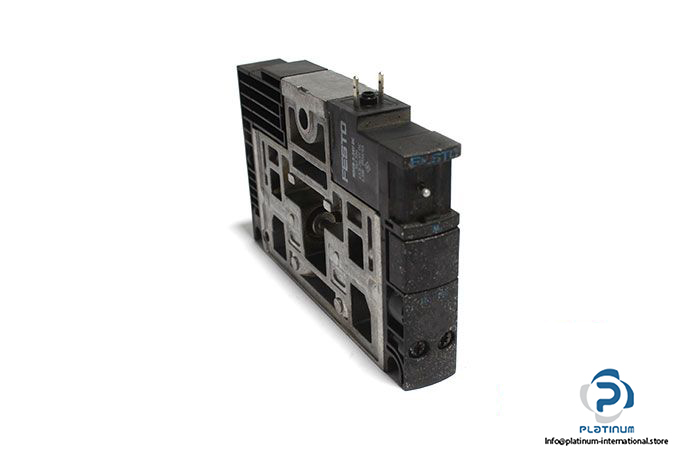

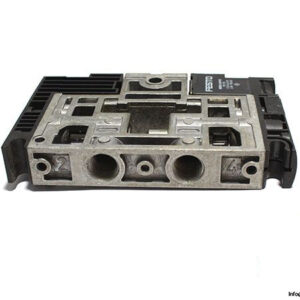

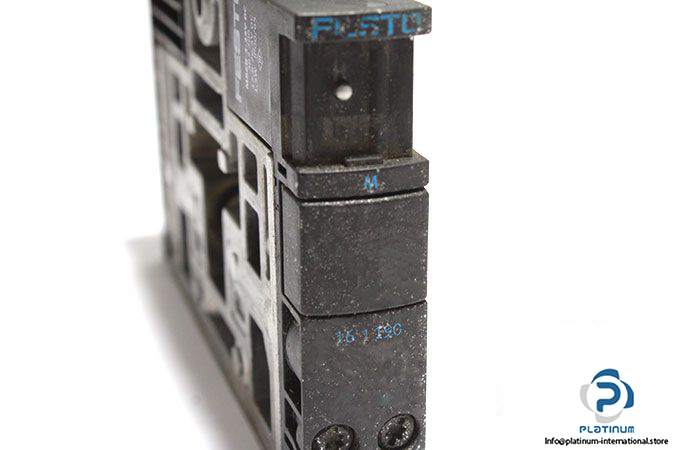

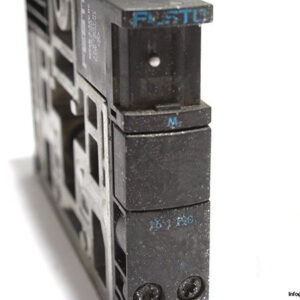

FESTO CPV18-M1H-5LS-1/4 SINGLE SOLENOID VALVE WITH SOLENOID COIL

The Festo CPV18-M1H-5LS-1/4 is a high-performance single solenoid valve designed for precision pneumatic applications. Featuring a 5/2-way monostable function and robust aluminum die-cast construction, this valve ensures optimal control of air flow with a high nominal flow rate. It includes the FESTO MSEB-3-24V DC coil for reliable electrical actuation and IP65 protection.

Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPV18-M1H-5LS-1/4
Part No.: 163190

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 1600 l/min
• Pneumatic Connection: G1/4
• Material: Aluminum die cast
• Ambient Temperature: -5 / 50 °C

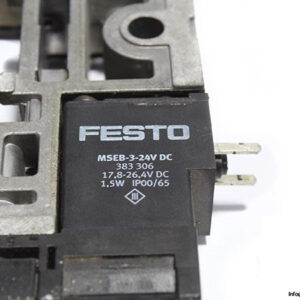

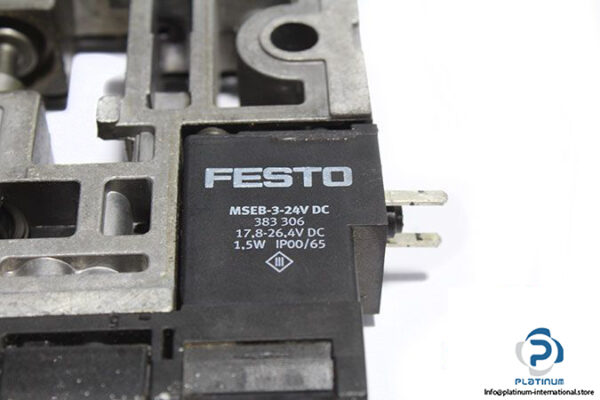

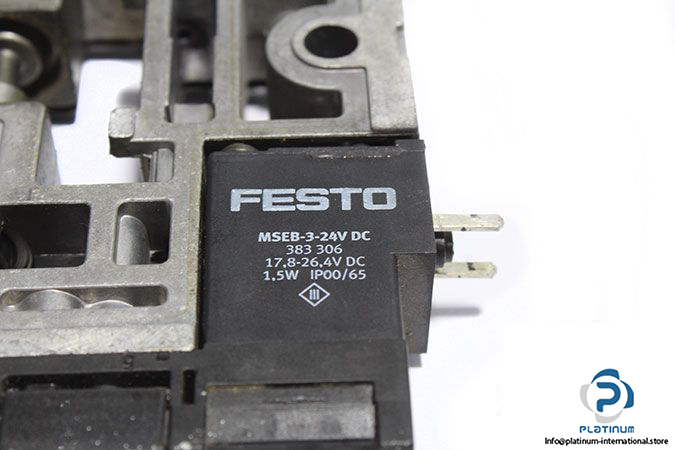

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 383306

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.5 W
• Protection Class: IP65
