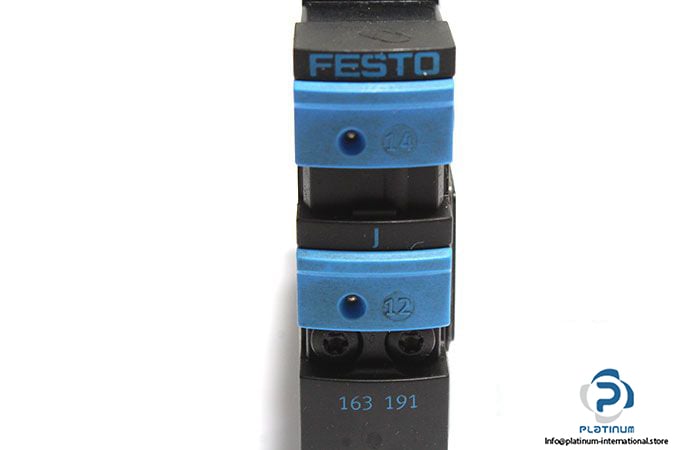

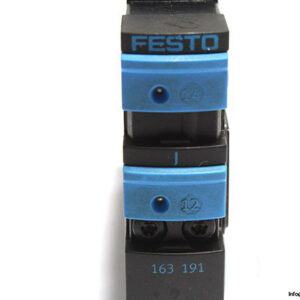

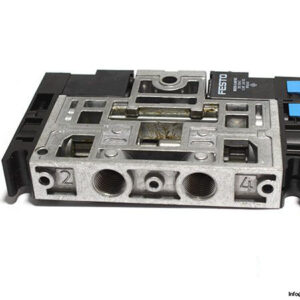

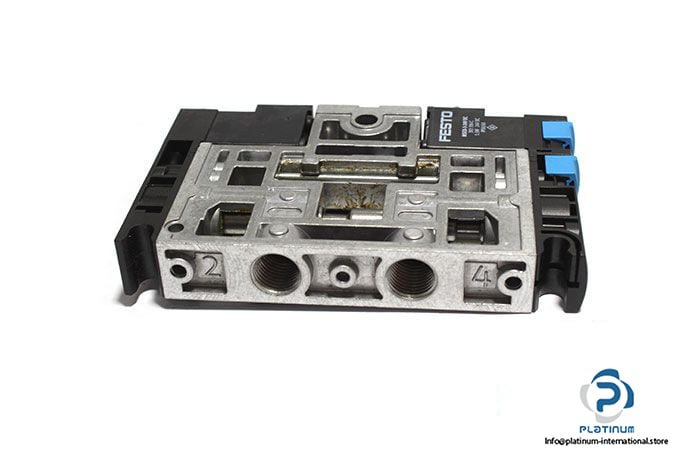

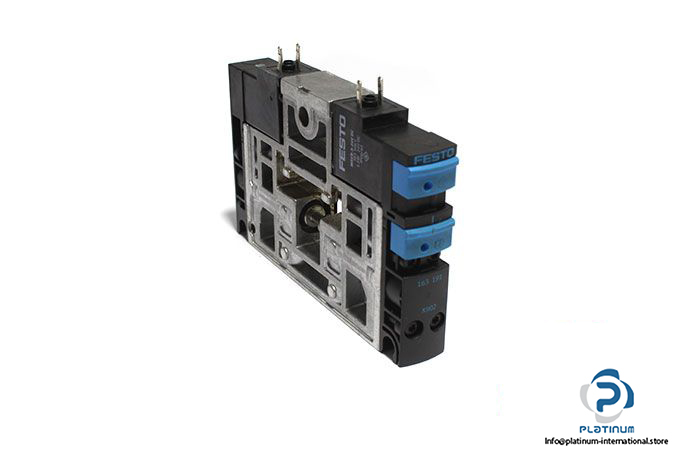

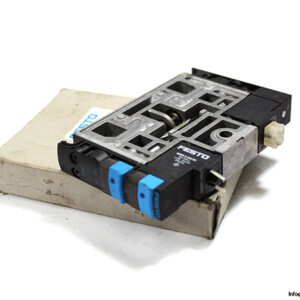

FESTO CPV18-M1H-5JS-1/4 DOUBLE SOLENOID VALVE WITH COIL

The FESTO CPV18-M1H-5JS-1/4 is a high-performance double solenoid valve engineered for demanding pneumatic applications. Featuring a bistable 5/2 function and robust aluminum die-cast design, this valve ensures fast, precise control of air flow. It is paired with the FESTO MSEB-3-24V DC solenoid coil, optimized for reliable operation under varied industrial conditions.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPV18-M1H-5JS-1/4
Part No.: 163191

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 2 to 8 bar
• Nominal Flow Rate: 1600 l/min
• Pneumatic Connection: G1/4
• Material: Aluminum die cast
• Ambient Temperature: -5 to 50 °C

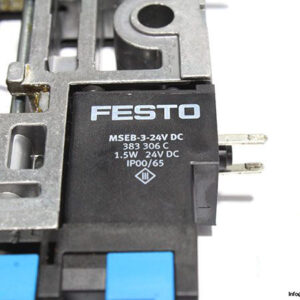

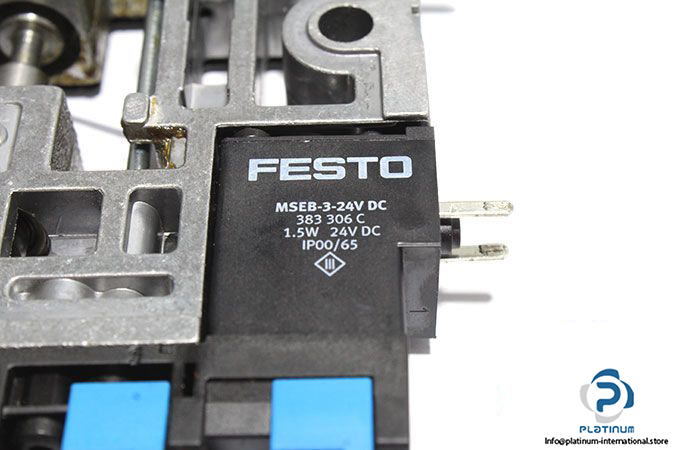

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 383306

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.5 W
• Protection Class: IP65
