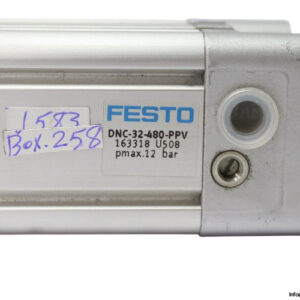

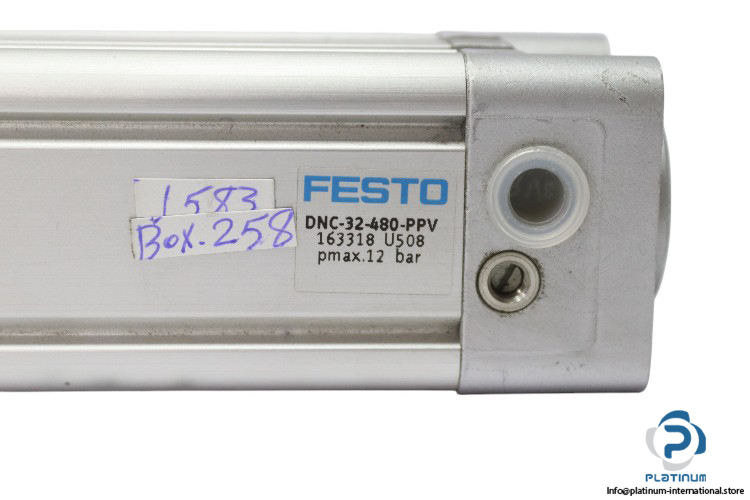

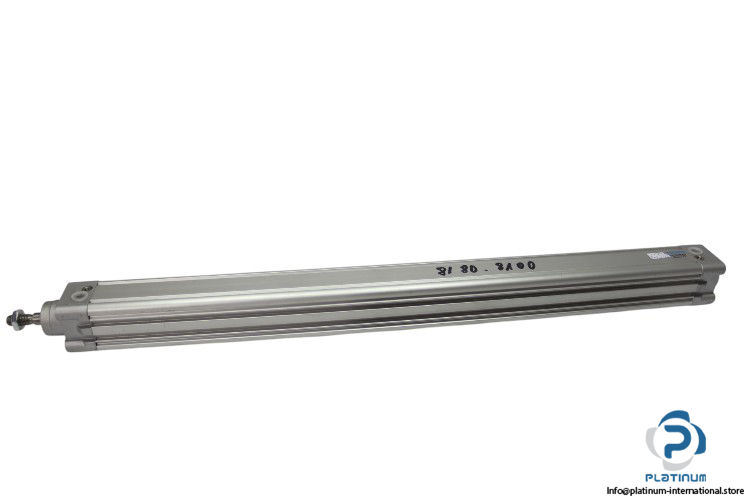

FESTO DNC-32-480-PPV ISO CYLINDER

This FESTO ISO cylinder is engineered for precise pneumatic actuation with a high stroke length and robust build quality, suitable for demanding industrial environments.

Manufacturer: Festo
Type: ISO Cylinder
Model: DNC-32-480-PPV
Part No.: 163318
Ref. Code: U508
Series: DNC

Technical Information

• Media: Compressed Air
• Bore Diameter: 32 mm
• Stroke: 480 mm
• Bore x Stroke: 32 x 480 mm
• Rod Diameter: 12 mm
• Frame Dimensions: 44 x 575 mm
• Pneumatic Connection: G 1/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Ambient Temperature Range: -20 to +80°C

Materials

• Cover: Die-cast Aluminum
• Seals: TPE-U (PU)
• Piston Rod: High-alloy Steel
• Cylinder Barrel: Wrought Aluminum Alloy, Smooth Anodized
