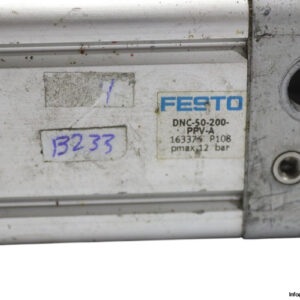

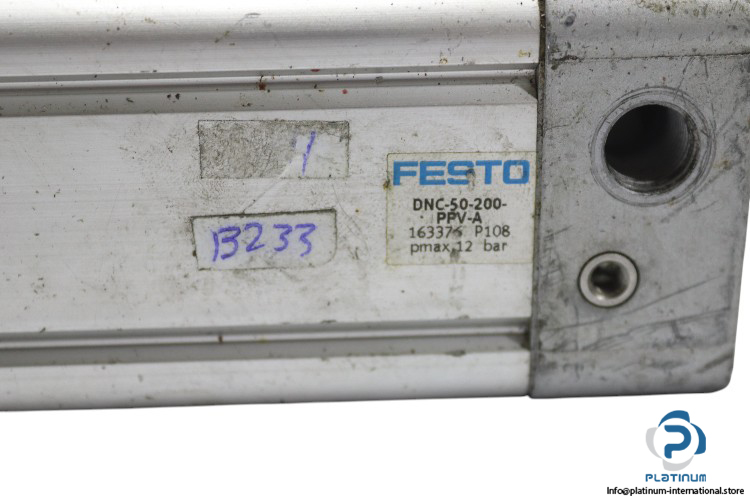

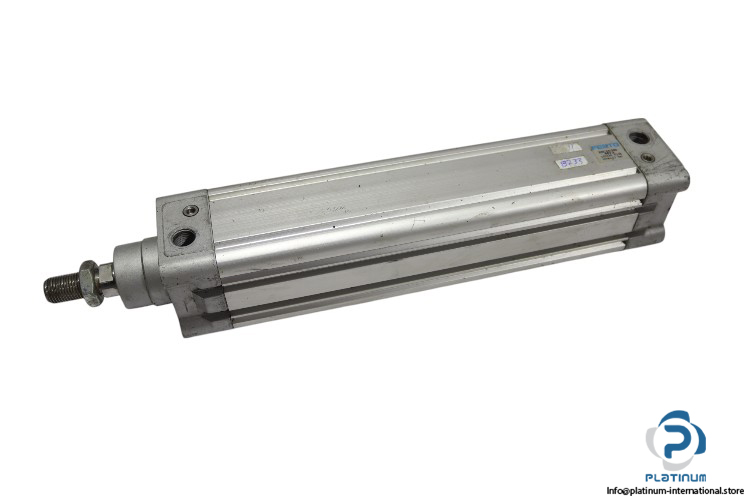

Festo DNC-50-200-PPV-A ISO Cylinder

The Festo DNC-50-200-PPV-A ISO Cylinder is a robust pneumatic actuator built for reliable performance in demanding industrial environments. With a 50 mm bore, 200 mm stroke, and maximum pressure of 12 bar, it ensures efficient motion control with precise air-powered actuation.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNC-50-200-PPV-A

Part No.: 163376

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 200 mm
• Bore x Stroke: 50 x 200 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 64 x 340 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
