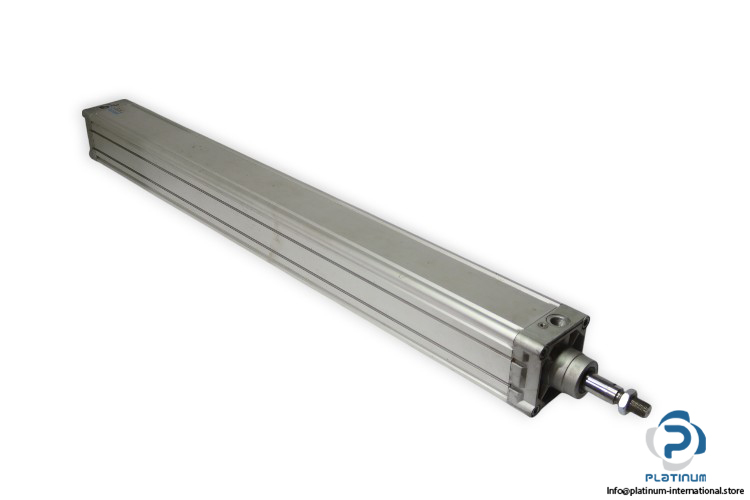

FESTO DNC-100-1000-PPV-A ISO CYLINDER

The Festo DNC-100-1000-PPV-A ISO cylinder is a high-performance pneumatic actuator designed for industrial automation requiring long stroke and robust construction. Built to ISO standards, it delivers reliable, double-acting motion for demanding applications. Manufacturer: Festo
Type: ISO Cylinder

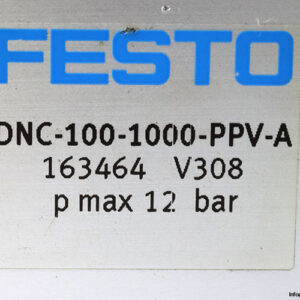

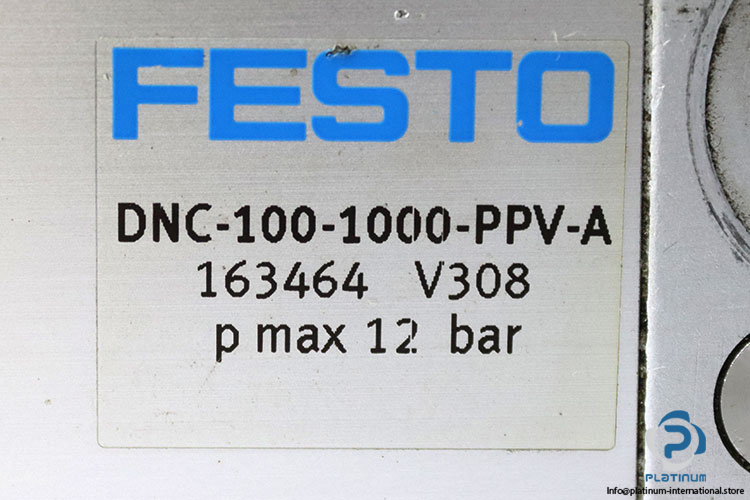

Model: DNC-100-1000-PPV-A
Part No.: 163464
Ref. Code: V308 / N361999000494

Technical Information

Media: Compressed Air
Bore Diameter: 100 mm
Stroke: 1000 mm
Bore x Stroke: 100 x 1000 mm
Pneumatic Connection: G1/2
Pressure Max.: 12 bar
Operation Mode: Double acting
Piston Rod End: External thread
Shape: Square
Rod Direction: One Side
Ambient Temperature: -20 to 80 °C
Cover Material: Die-cast aluminum
Seals Material: TPE-U(PU)
Piston Rod Material: High-alloy steel
