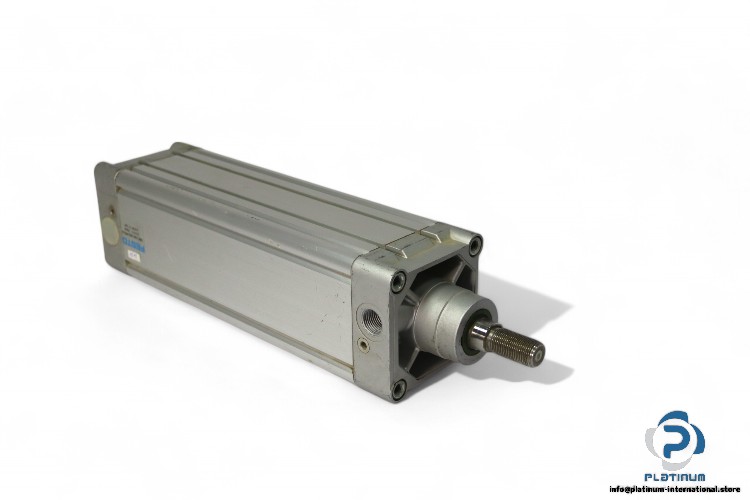

FESTO ISO Cylinder DNC-100-250-PPV-A

Manufacturer: FESTO

Type: ISO Cylinder

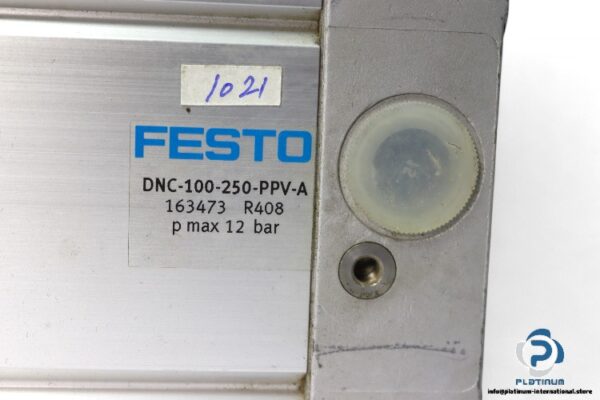

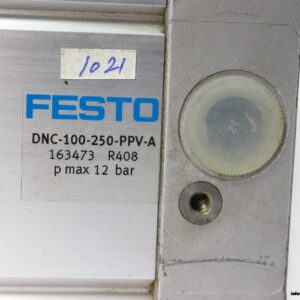

Model: DNC-100-250-PPV-A

Part No.: 163473

The FESTO DNC-100-250-PPV-A is a robust ISO cylinder engineered for high-performance pneumatic applications. Its 100 mm piston diameter and 250 mm stroke length make it suitable for tasks requiring significant force and extended reach. Designed for double-acting operation, this cylinder is capable of delivering precise and consistent motion in demanding industrial environments.

Technical Specifications:

• Stroke Length: 250 mm
• Piston Diameter: 100 mm
• Fluid: Air
• Piston-rod End: Male Thread
• Variants: Piston Rod at One End
• Max. Operating Pressure: 12 bar
• Mode of Operation: Double Acting
• Pneumatic Connection: G1/2
• Ambient Temperature: -20 °C / 80 °C

With its rugged construction and high operational reliability, the FESTO DNC-100-250-PPV-A ISO cylinder is an excellent choice for a variety of industrial and automation applications, delivering optimal performance and precision.
