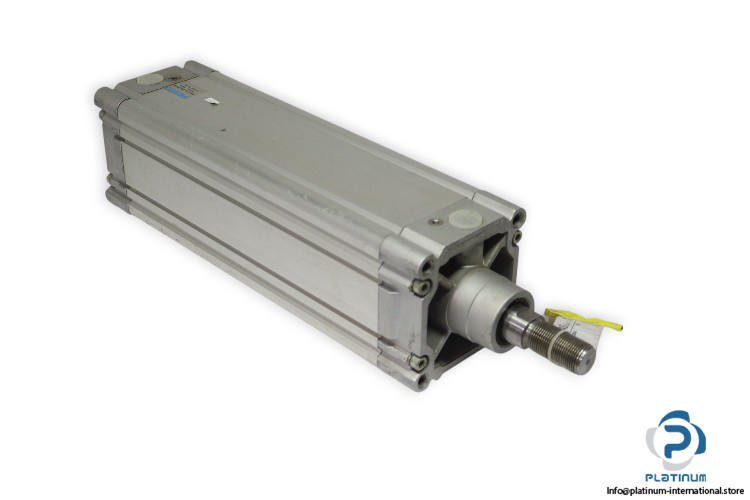

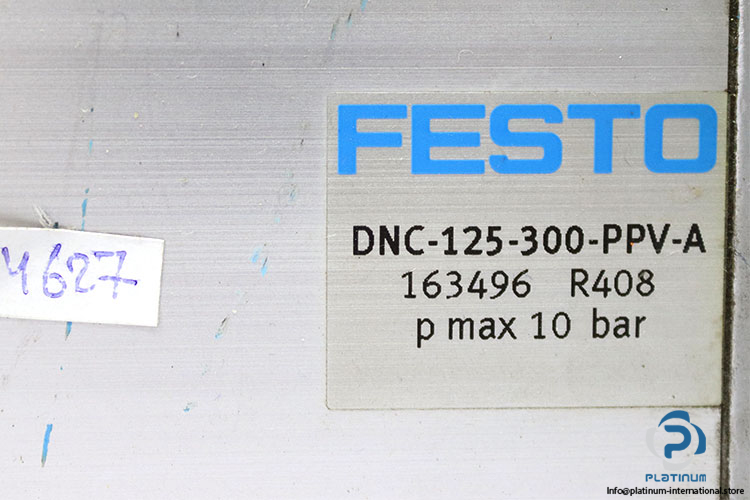

FESTO DNC-125-300-PPV-A ISO CYLINDER

The Festo DNC-125-300-PPV-A ISO cylinder is a high-performance pneumatic actuator designed for precision, strength, and reliability in industrial automation systems. Featuring a large 125 mm piston and 300 mm stroke, this robust cylinder ensures optimal operation under demanding conditions. Manufacturer: Festo
Type: ISO Cylinder
Model: DNC-125-300-PPV-A
Part No.: 163496
Ref. Code: R408

Technical Information

Stroke: 300 mm
Piston Diameter: 125 mm
Operating Pressure: Max. 10 bar
Mode of Operation: Double-acting
Operating Medium: Compressed air
Cushioning: Pneumatic cushioning, adjustable at both ends
Cover Material: Die-cast aluminum, coated
Material of Cylinder Barrel: Wrought aluminum alloy, smooth anodized
Ambient Temperature: -20 °C to 80 °C
Pneumatic Connection: G1/2
