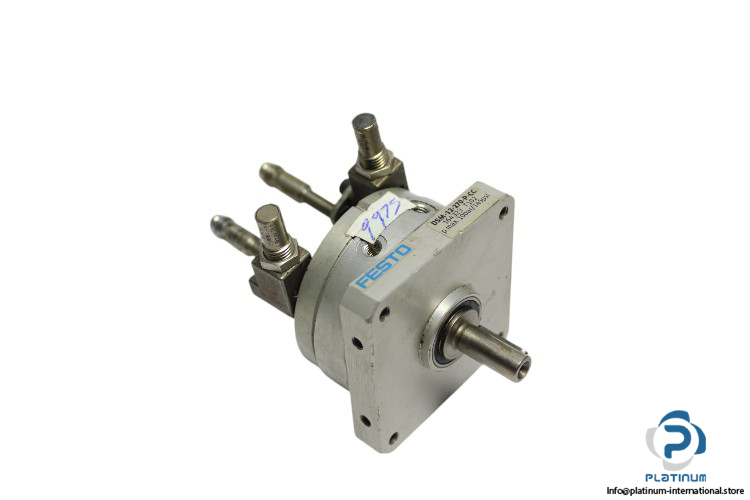

Festo DSM-12-270-P-CC Swivel Module
The Festo DSM-12-270-P-CC Swivel Module is designed for precise rotary motion in industrial applications. With a maximum swivel angle of 270° and integrated shock absorbers at both ends, this module ensures smooth and reliable operation.
Manufacturer: Festo
Type: SWIVEL MODULE

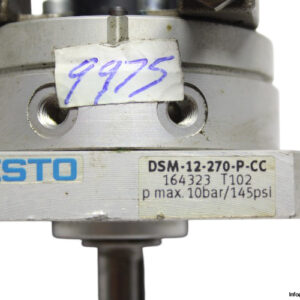

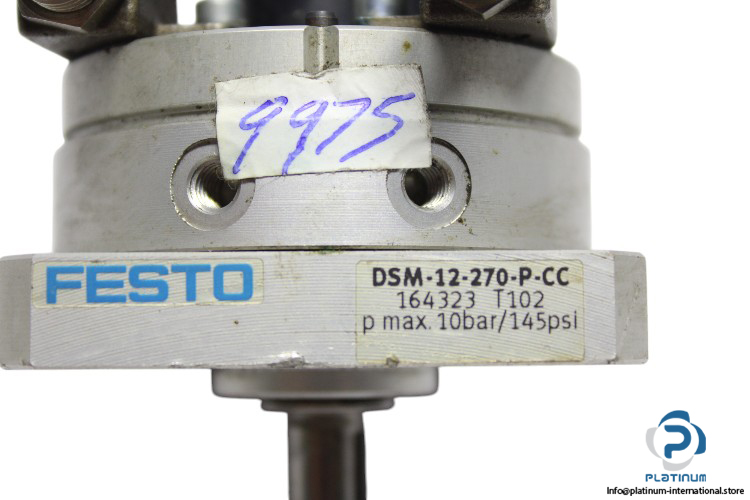

Model: DSM-12-270-P-CC
Part No.: 164323
Technical Information:
- Fluid: Filtered compressed air, lubricated or unlubricated
- Size: 12
- Max. Swivel Angle: 270°
- Cushioning: P, Non-adjustable at either end

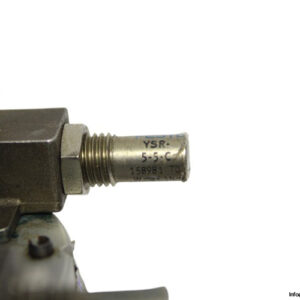

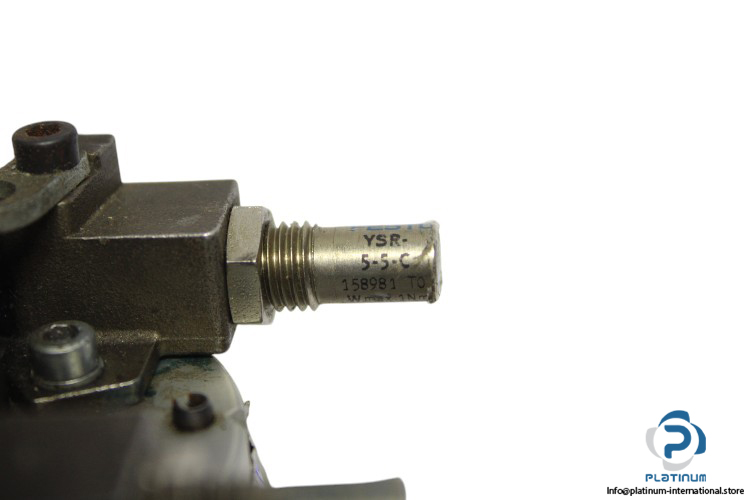

- Fixed Stop/Shock Absorber: CC, Shock absorbers at both ends
- Fine Adjustment: -5°
- Operating Pressure: 2 – 10 bar
- Max. Pressure: 145 Psi, 10 bar
- Pneumatic Connection: M5
- Design: Rotary vane
- Shaft Material: Nickel-plated steel
- Housing, Stop Lever Material: Anodized aluminum
- Fluid Temperature Range: -10 to 60 °C
This swivel module is built for durability and precise motion, making it an excellent choice for automation applications requiring controlled rotational movement.
