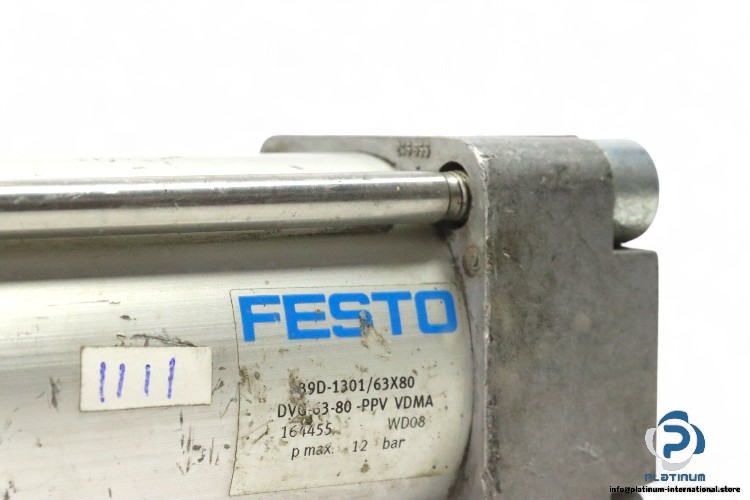

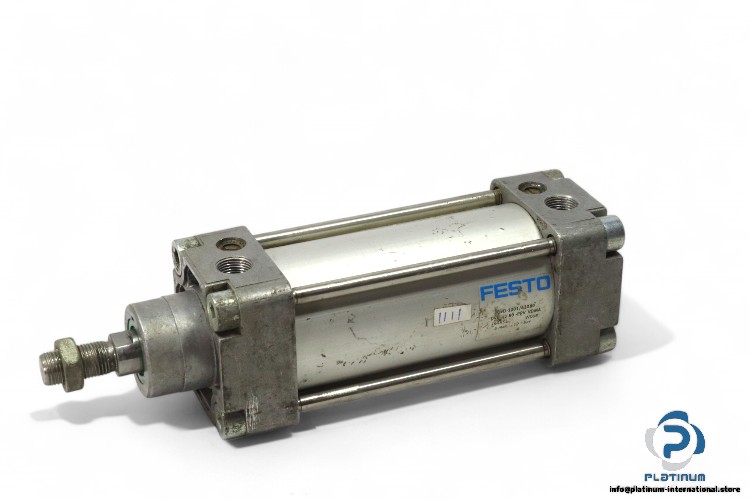

FESTO DVG-63-80-PPV VDMA PNEUMATIC CYLINDER

The FESTO DVG-63-80-PPV VDMA Pneumatic Cylinder offers reliable and high-performance operation in industrial applications. With a 63 mm bore diameter and a stroke of 80 mm, this double-acting cylinder is designed to meet the demanding needs of automated systems.

Manufacturer: FESTO

Type: Pneumatic Cylinder

Model: DVG-63-80-PPV VDMA

Part No.: 164455

Ref No.: 89D-1301

Technical Specifications

• Bore Diameter: 63 mm
• Stroke: 80 mm
• Rod Diameter: 20 mm
• Mode of Operation: Double acting
• Rod Direction: One Side
• Piston Rod End: Male
• Max Temperature: 80 °C
• Max. Operating Pressure: 12 bar
• Port Size: G3/8
