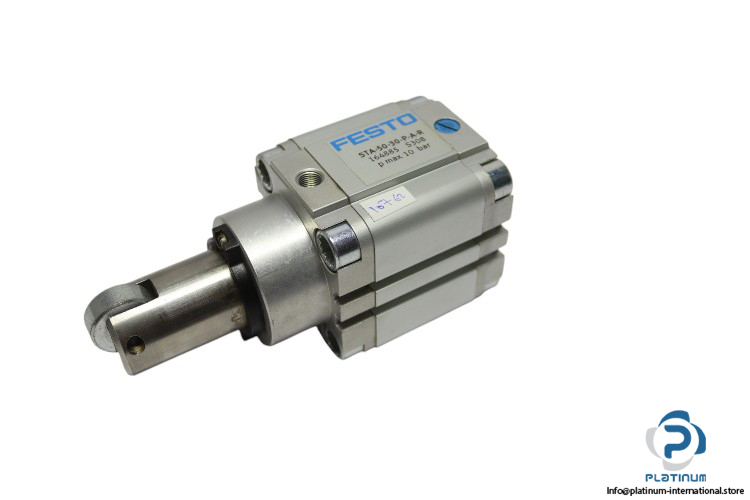

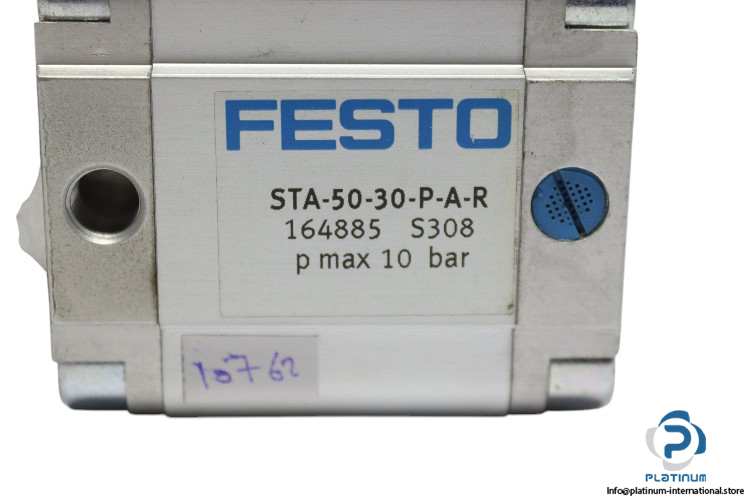

FESTO Stopper Cylinder STA-50-30-P-A-R

The FESTO Stopper Cylinder STA-50-30-P-A-R is designed for precise and efficient stopping and positioning in pneumatic systems. This cylinder features a 30 mm stroke length and a 50 mm piston diameter, ensuring reliable performance in various industrial applications. With a maximum operating pressure of 10 bar, this cylinder offers robust functionality with a roller actuator and a durable aluminium body. The G 1/8 port size and temperature range of 0 to 60°C make it highly versatile for a variety of pneumatic systems.

Manufacturer: FESTO

Type: Stopper Cylinder

Model: STA-50-30-P-A-R

Part No.: 164 885

Technical Specifications

• Fluid: Compressed Air
• Stroke Length: 30 mm
• Piston Diameter: 50 mm
• Operating Pressure Max.: 10 bar
• Actuator Type: Roller
• Material: Aluminium
• Port Size: G 1/8
• Temperature: 0 / 60 °C
