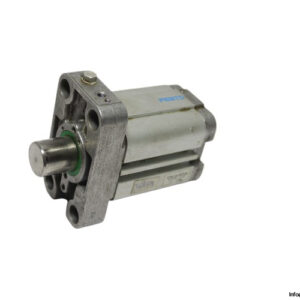

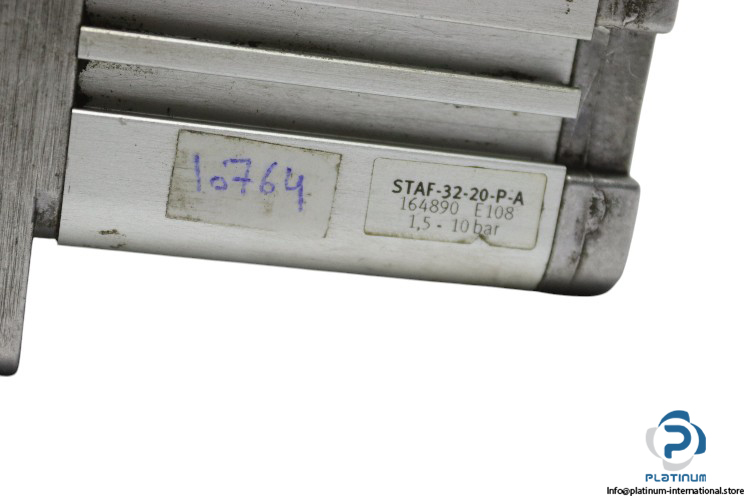

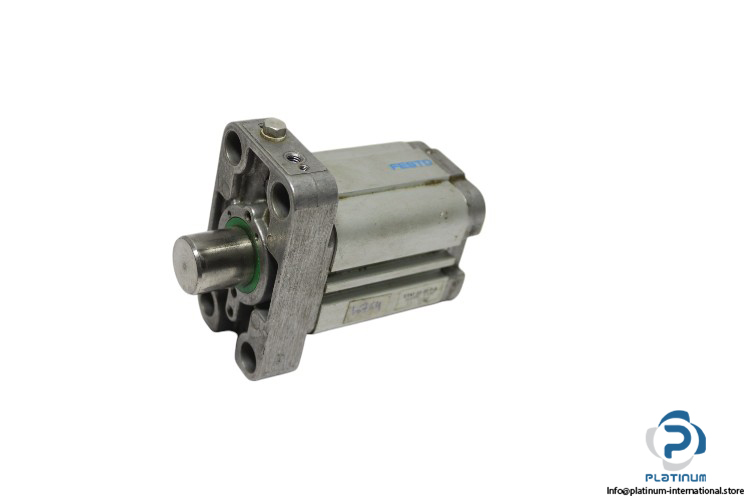

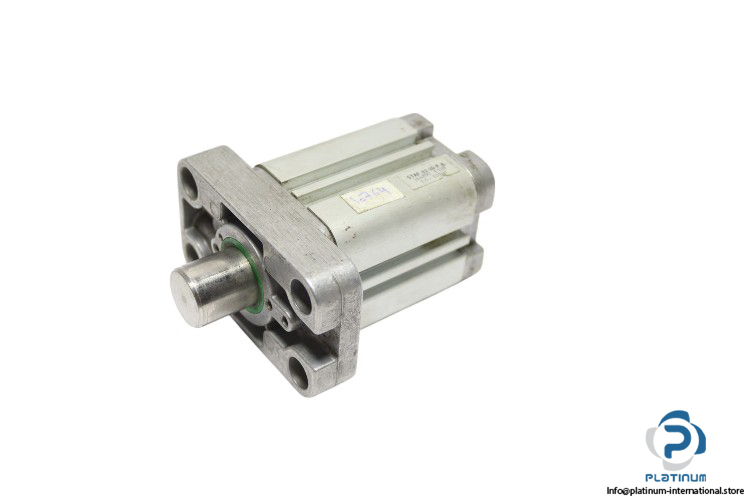

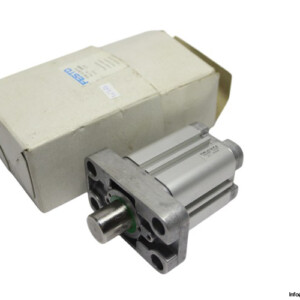

FESTO Stopper Cylinder STAF-32-20-P-A
The FESTO Stopper Cylinder STAF-32-20-P-A is designed for precise stopping and positioning in pneumatic systems. With a stroke length of 20 mm and a piston diameter of 32 mm, this cylinder provides reliable performance under varying operating pressures from 1.5 to 10 bar. Constructed from durable aluminum, it ensures long-lasting operation and can be used in a wide range of industrial applications. The cylinder also features a 5 mm port size and operates within a temperature range of 0 to 60°C, making it highly versatile for different environments.
Manufacturer: FESTO
Type: Stopper Cylinder
Model: STAF-32-20-P-A
Part No.: 164890
Technical Specifications
- Fluid: Compressed Air
- Stroke Length: 20 mm
- Piston Diameter: 32 mm
- Operating Pressure: 1.5 / 10 bar
- Material: Aluminium
- Port Size: 5 mm
- Temperature: 0 / 60 °C
