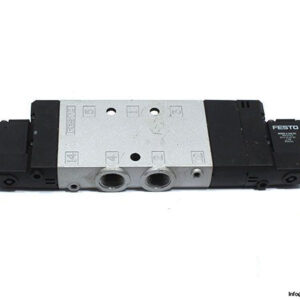

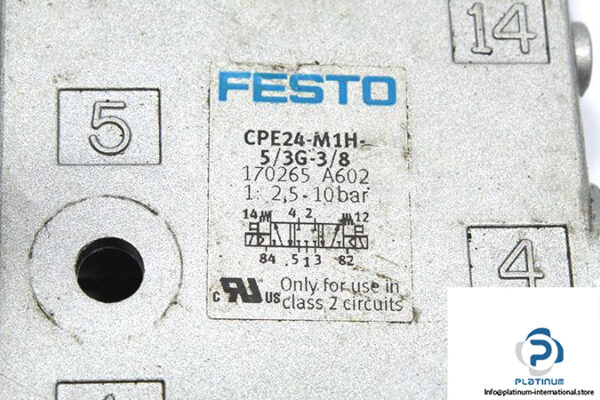

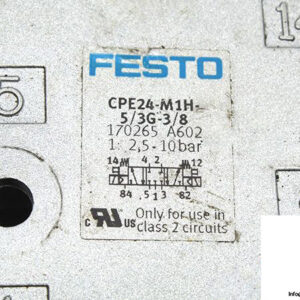

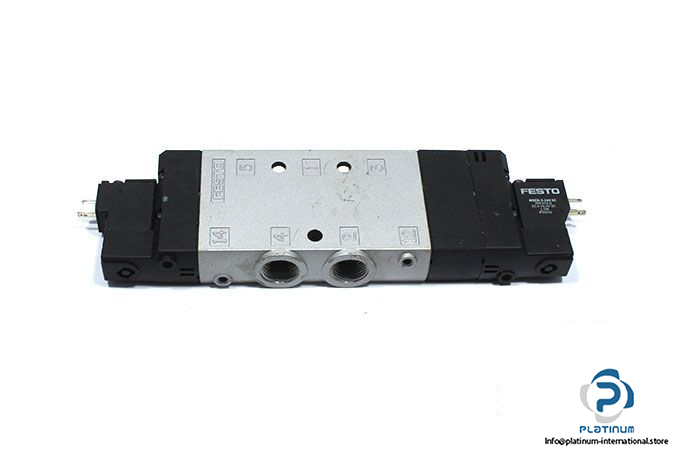

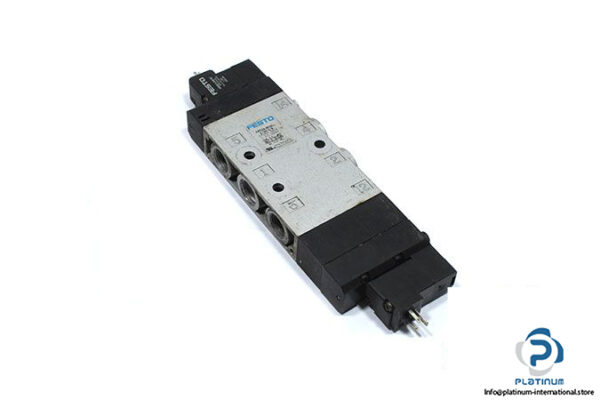

FESTO CPE24-M1H-5/3G-3/8 DOUBLE SOLENOID VALVE WITH COIL

The FESTO CPE24-M1H-5/3G-3/8 is a high-performance double solenoid valve designed for precise pneumatic control. With a 5/3 closed function and piston gate design, it offers reliable operation in demanding industrial automation systems. This model includes a FESTO MSEB-3-24V DC solenoid coil for efficient actuation.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE24-M1H-5/3G-3/8
Part No.: 170265

Valve Technical Specifications

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 closed
• Type of Actuation: Electrically
• Operating Pressure: 2.5 / 10 bar
• Nominal Flow Rate: 3000 l/min
• Pneumatic Connection: G3/8
• Material: Die-cast aluminum
• Ambient Temperature: -5 / 50 °C

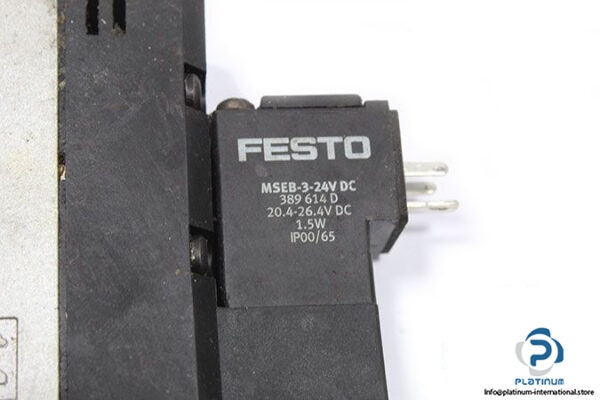

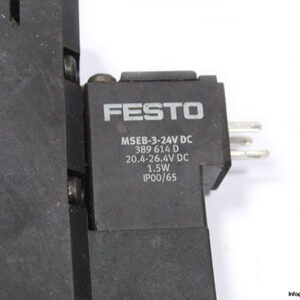

Solenoid Coil Attachment

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 389614

Coil Technical Specifications

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 1.25 W
• Protection Class: IP00 / IP65
