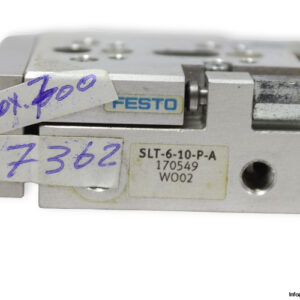

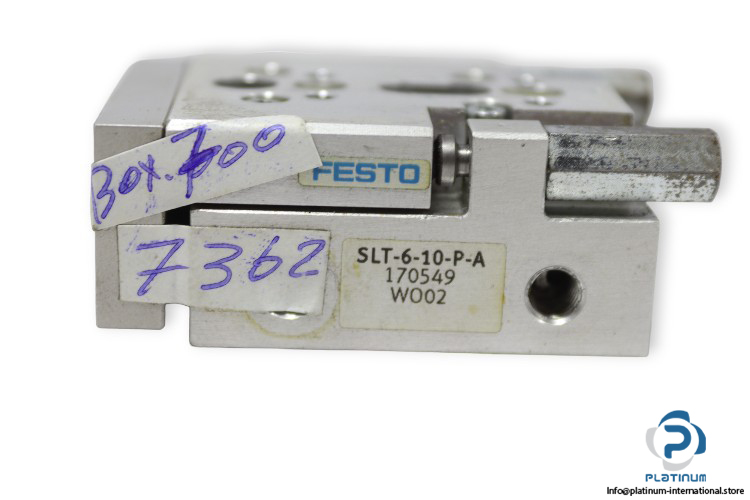

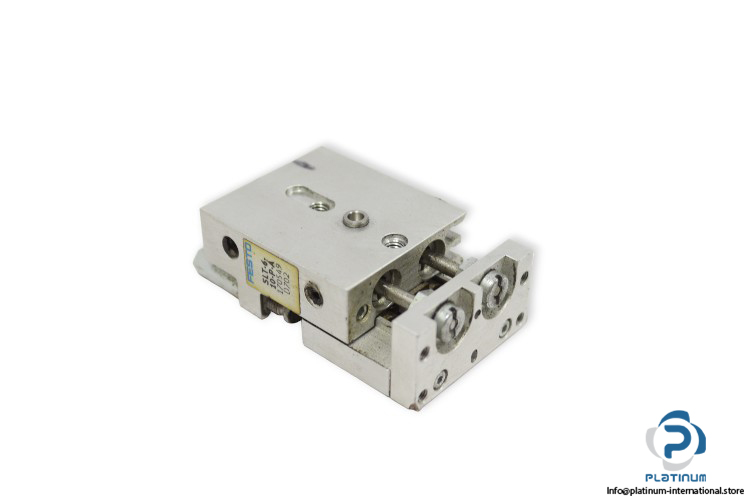

Manufacturer: FESTO
Type: Mini Slide
Model: SLT-6-10-P-A
Part No.: 170549

Fluid: Compressed air
Piston Diameter: 6 mm
Adjustable end-position range/length: 7 mm
Stroke: 10 mm
Position detection: Via proximity switch
Cushioning: Yoke
Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
Working Pressure: 1.5 … 10 bar
Mode of operation: Double-acting
Max. force Fy: 200 N
Pneumatic connection: M5
Material housing: Wrought Aluminium alloy
Ambient Temperature Range: -20… 60°C
