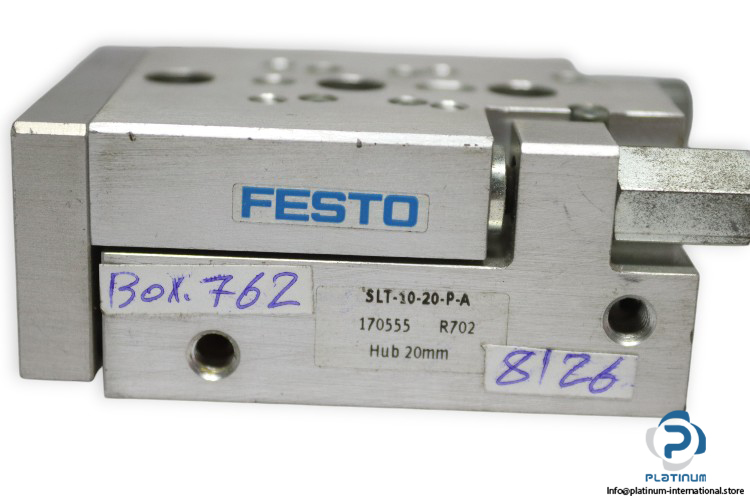

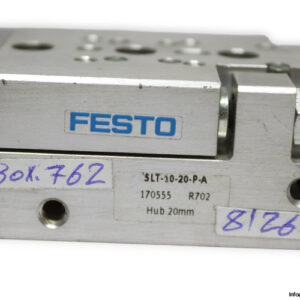

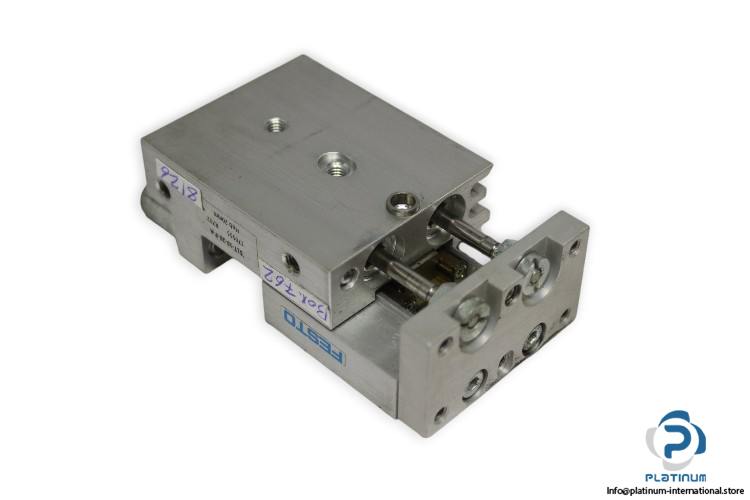

Manufacturer: FESTO
Type: Mini slide
Model: SLT-10-20-P-A
Part No.: 170555

Stroke: 20 mm
Adjustable end-position range/length: 4 mm
Piston diameter: 10 mm
Cushioning: Flexible cushioning rings/plates at both ends
Guide: Ball bearing cage guide
Position detection: For proximity sensor
Operating pressure: 1 … 10 bar
Mode of operation: double-acting
Operating medium: Compressed air
Ambient temperature: -20 … 60 °C
Impact energy in end positions: 0.1 Nm
Max. force Fy: 370 N
Max. force Fz: 370 N
Max. torque Mx: 1.7 Nm
Max. torque My: 1.7 Nm
Max. torque Mz: 1.4 Nm
Theoretical force at 6 bar, return stroke: 79 N
Theoretical force at 6 bar, advance stroke: 94 N
Moving mass: 122 g
Pneumatic connection: M5
