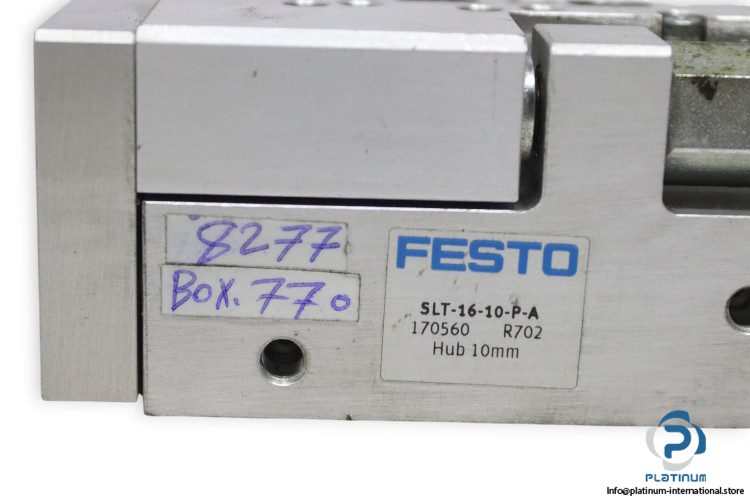

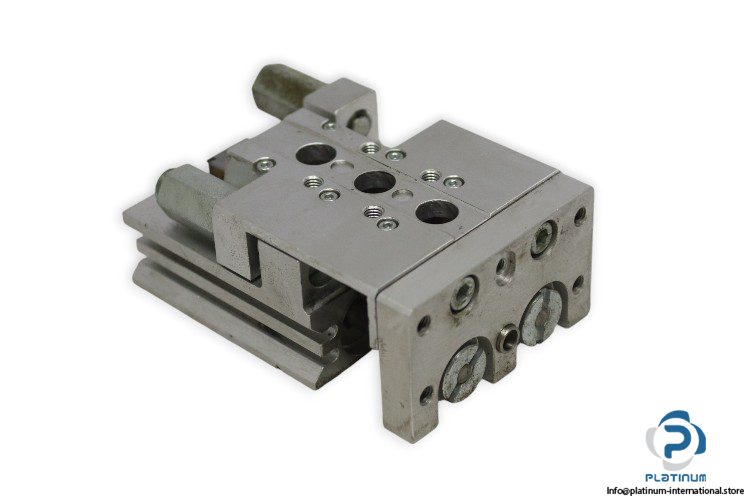

Manufacturer: FESTO
Type: mini slide
Model: SLT-16-10-P-A
Part No.: 170 560

Stroke: 10 mm
Adjustable end-position range/length: 12 mm
Piston diameter: 16 mm
Cushioning: Flexible cushioning rings/plates at both ends
Guide: Ball bearing cage guide
Position detection: For proximity sensor
Operating pressure: 1 … 10 bar
Mode of operation: double-acting
Operating medium: Compressed air
Ambient temperature: -20 … 60 °C
Pneumatic connection: M5
Max. force Fy: 820 N
Max. force Fz: 820 N
Material housing: Wrought Aluminium alloy
