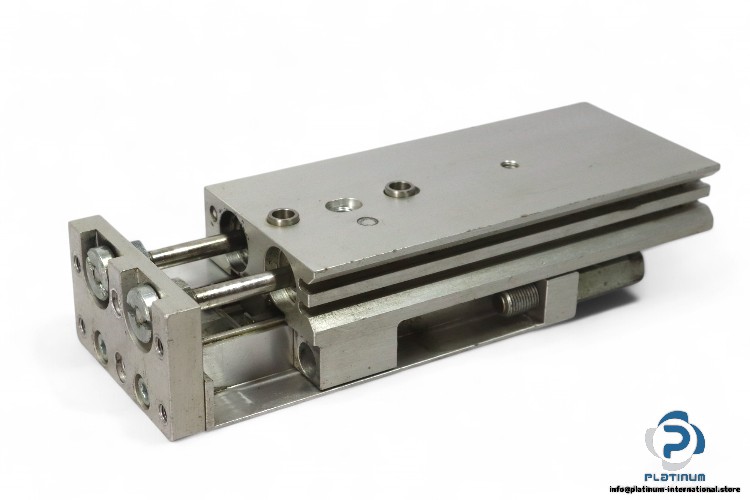

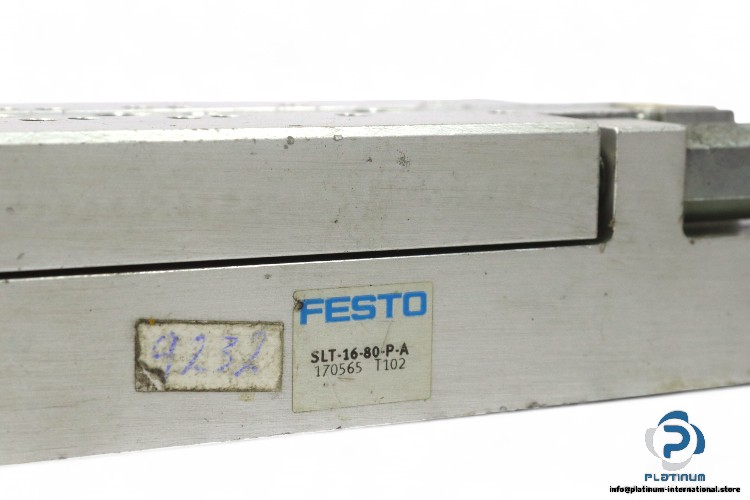

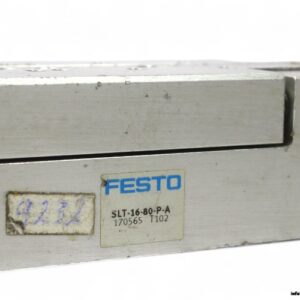

FESTO SLT-16-80-P-A Mini Slide
The FESTO SLT-16-80-P-A Mini Slide (Part No. 170565) is a compact and precise pneumatic actuator designed for smooth linear motion in demanding industrial applications. Featuring a ball bearing cage guide and double-acting operation, this mini slide ensures reliability, flexibility, and long service life.
- Manufacturer: FESTO
- Type: Mini Slide
- Model: SLT-16-80-P-A
- Part No.: 170565
Technical Information:
- Stroke: 80 mm
- Adjustable End-Position Range/Length: 12 mm
- Piston Diameter: 16 mm
- Cushioning: Flexible cushioning rings/plates at both ends
- Assembly Position: Any
- Guide: Ball bearing cage guide
- Design Structure: Yoke kinematics
- Position Detection: For proximity sensor
- Operating Pressure: 1 … 10 bar
- Mode of Operation: Double-acting
- Operating Medium: Compressed air (ISO8573-1:2010 [7:4:4])
- Corrosion Resistance Class CRC: 0 – No corrosion stress
- Ambient Temperature: -20 to 60 °C
- Impact Energy in End Positions: 0.3 Nm
- Theoretical Force at 0.6 MPa (6 bar), Return Stroke: 207 N
- Theoretical Force at 0.6 MPa (6 bar), Advance Stroke: 242 N
- Mounting Type: With through hole
- Pneumatic Connection: M5
- Note on Materials: Free of copper and PTFE
- Material Cover: Wrought aluminium alloy
- Material Seals: HNBR
- Material Housing: Wrought aluminium alloy
- Material Piston Rod: High alloy steel, non-corrosive
