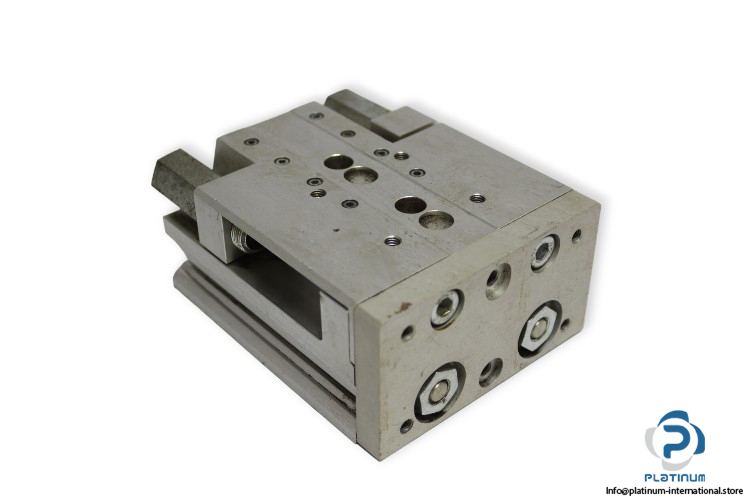

Manufacturer: FESTO
Type: Mini Slide

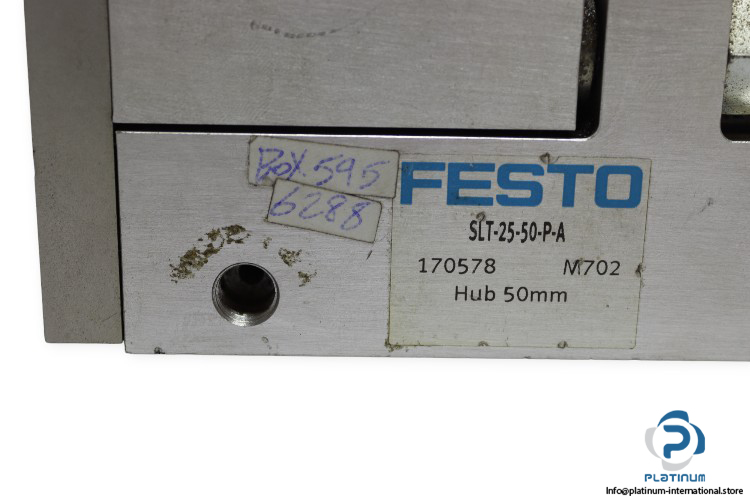

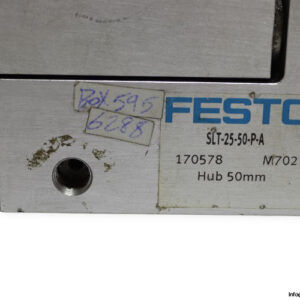

Model: SLT-25-50-P-A
Part No.: 170578

Fluid: Compressed air
Piston Diameter: 25 mm
Adjustable end-position range/length: 12 mm
Stroke: 50 mm
Guide: Ball bearing cage guide
Design structure Yoke kinematics
Position detection: Via proximity switch
Working Pressure: 1 … 10 bar
Mode of operation: Double-acting
Pneumatic connection: G 1/8
Ambient Temperature Range: -20… 60°C
Housing Material: Wrought Aluminium alloy
