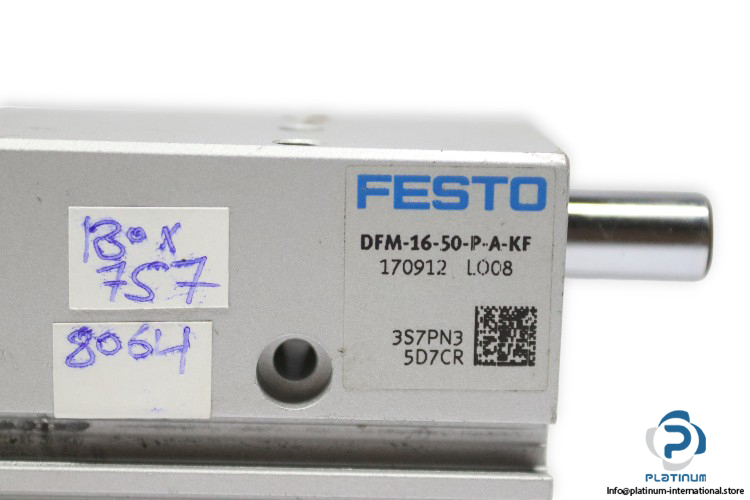

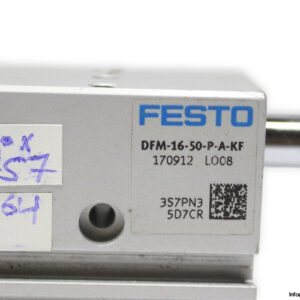

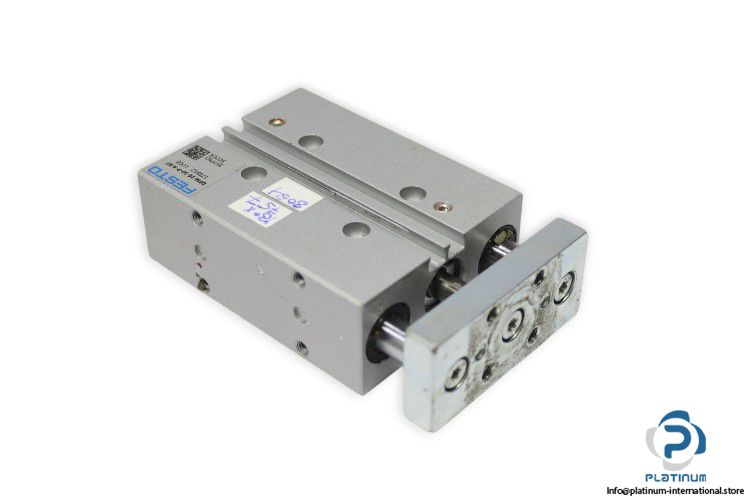

Manufacturer: FESTO
Type: Guided actuator
Model: DFM-16-50-P-A-KF
Part No.: 170912

Piston diameter: 16 mm
Theoretical force at 6 bar, advancing: 121 N
Stroke: 50 mm
Cushioning: Elastic cushioning rings/pads at both ends
Position sensing: For proximity sensor
Guide: Recirculating ball bearing guide
Operating pressure: 2 bar … 10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic connection: M5
