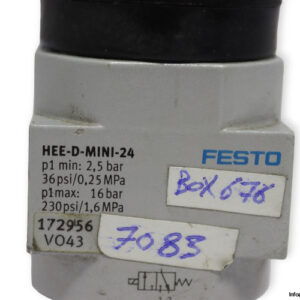

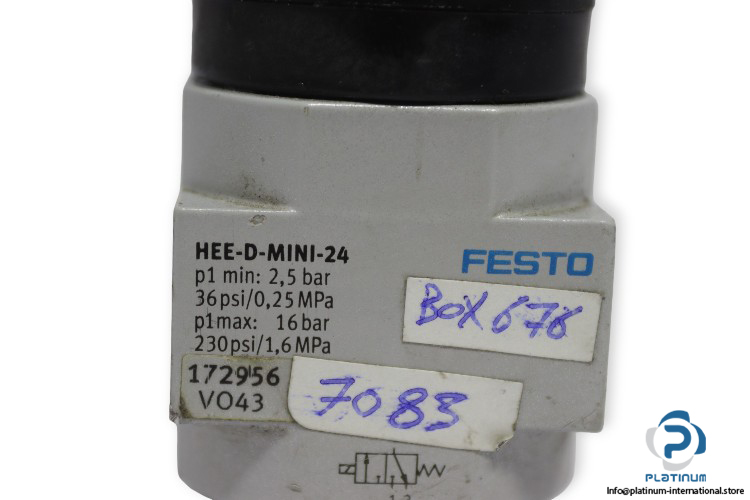

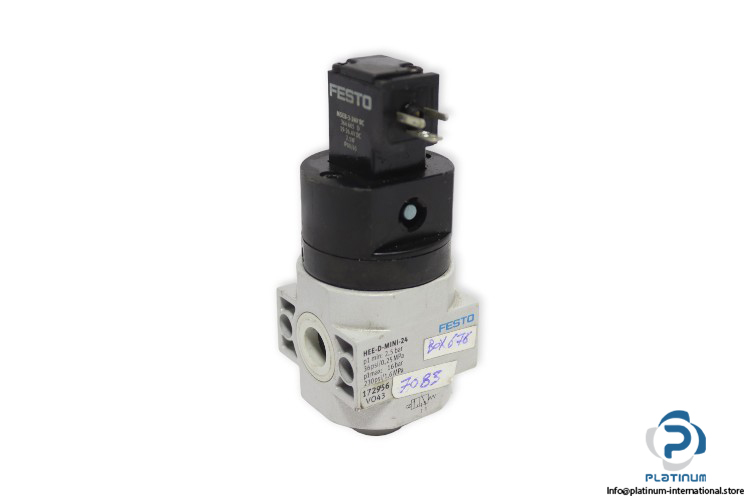

FESTO HEE-D-MINI-24 ON/OFF VALVE WITH SOLENOID COIL

The FESTO HEE-D-MINI-24 is a compact 3/2-way ON/OFF valve designed for reliable shut-off control of air and inert gases. Featuring an electrically actuated piston gate design and durable die-cast aluminium housing, this valve is ideal for high-performance pneumatic applications.

Manufacturer: FESTO
Type: ON/Off Valve
Model: HEE-D-MINI-24
Part No.: 172956

Technical Information

• Fluid: Air / Inert gases
• Size: MINI
• Design: Piston gate valve
• Function: 3/2-way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 2.5 … 16 bar
• Pneumatic Connection: G1/8
• Material: Die-cast aluminium
• Ambient Temperature: -10 / 60 °C

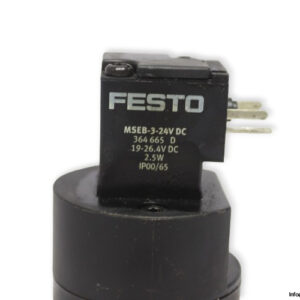

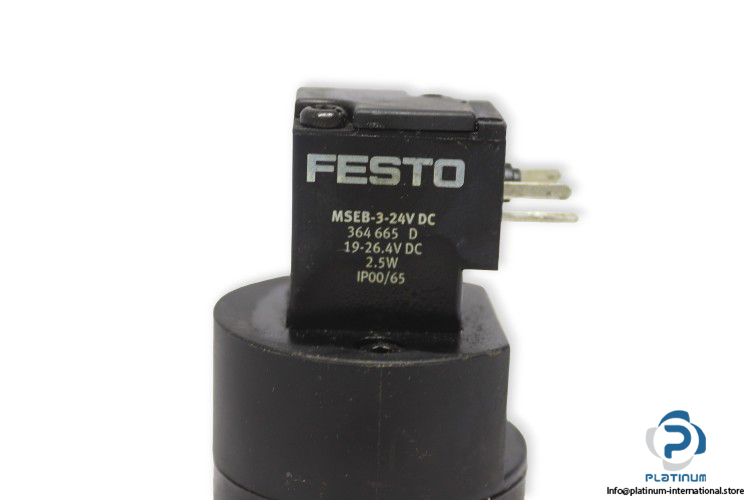

Attachment: FESTO MSEB-3-24V DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 364665

Solenoid Coil Technical Information

• Supply Voltage: 19 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
