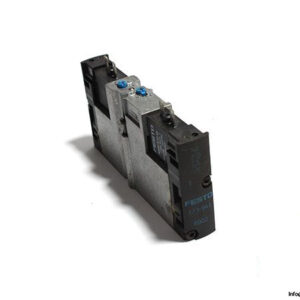

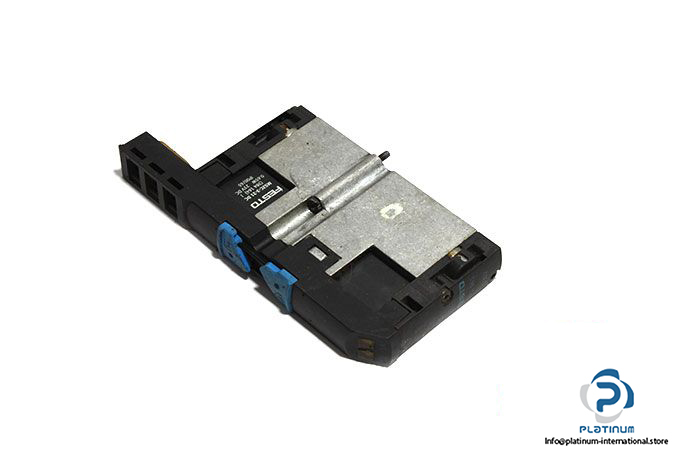

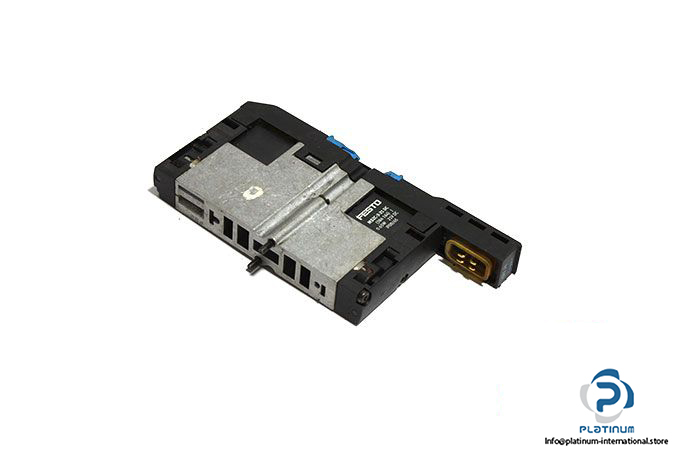

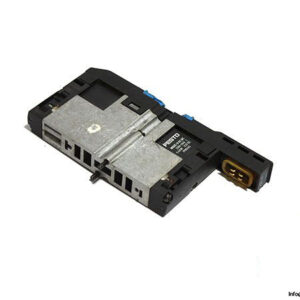

FESTO CPA14-M1H-5JS AIR SOLENOID VALVE WITH COIL & CURRENT BRIDGE

The FESTO CPA14-M1H-5JS is a robust 5/2 bistable air solenoid valve engineered for precise and stable pneumatic control. Constructed from durable die-cast aluminium, it features high flow rates and sub-base connections, making it ideal for demanding automation environments. Supplied with FESTO solenoid coil MSZC-3-21 and current bridge CPA14-EB2-HR.

Manufacturer: FESTO
Type: Air Solenoid Valve

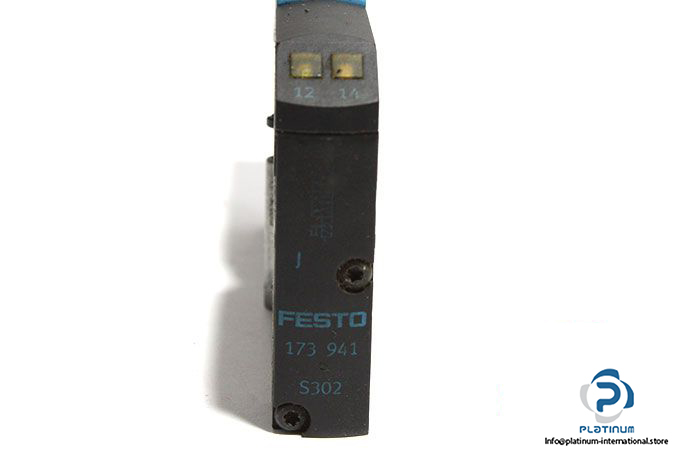

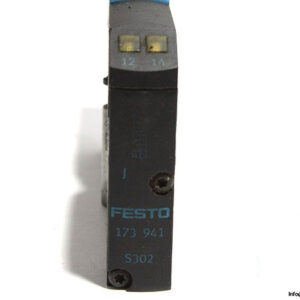

Model: CPA14-M1H-5JS
Part No.: 173941

Technical Information

• Fluid: Air
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 2 to 8 bar
• Nominal Flow Rate: 600 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminium
• Ambient Temperature: -5 to 50 °C

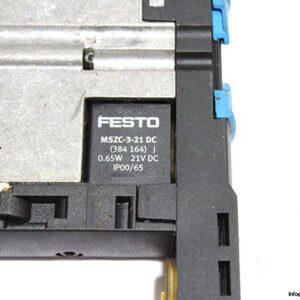

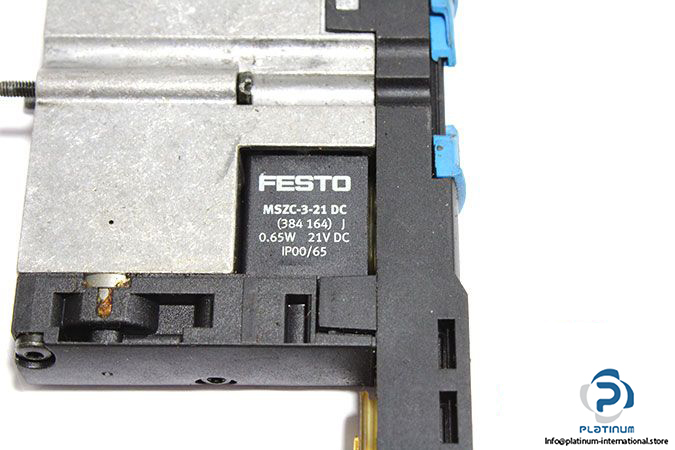

Attachment: FESTO 384164 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21
Part No.: 384164

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP00 / IP65

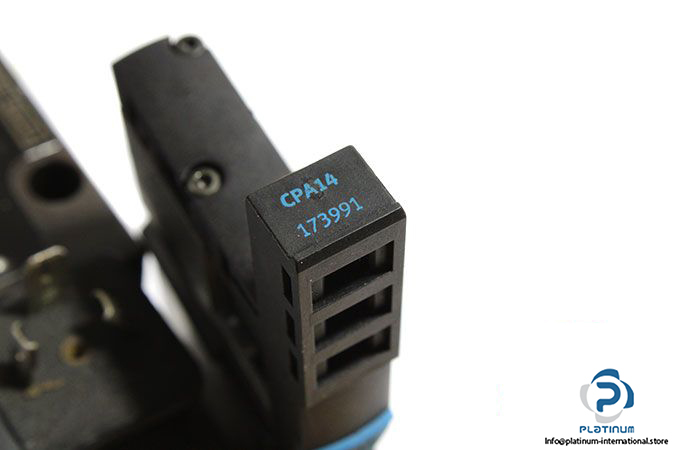

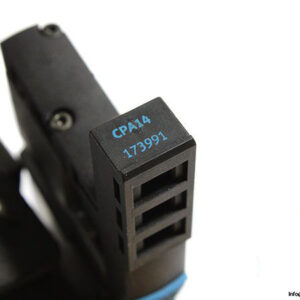

Attachment: FESTO 173991 CURRENT BRIDGE

Manufacturer: FESTO
Type: Current Bridge
Model: CPA14-EB2-HR
Part No.: 173991
