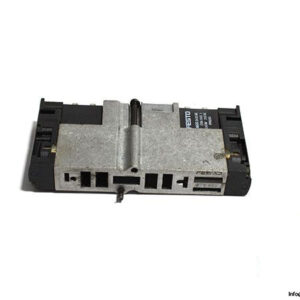

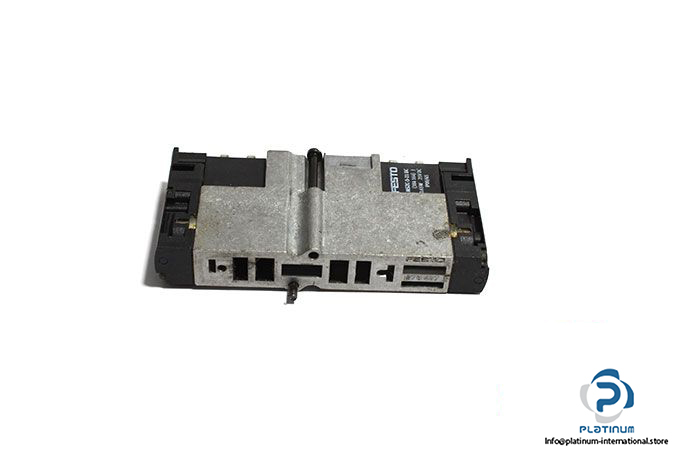

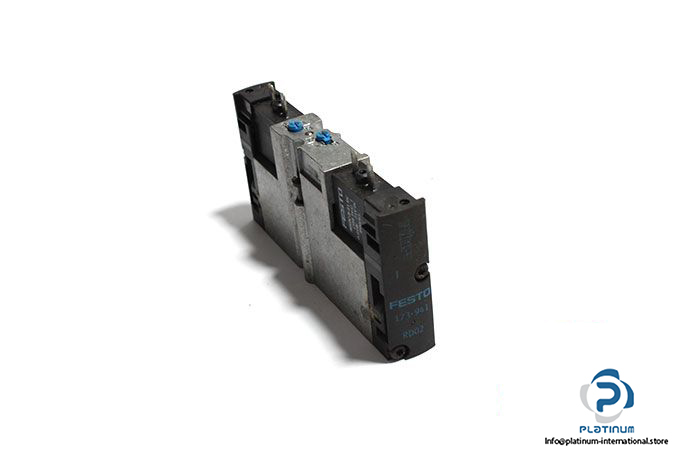

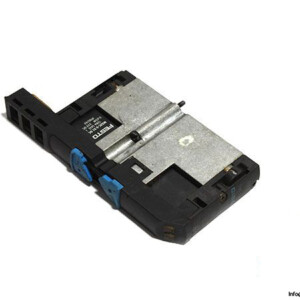

FESTO CPA14-M1H-5JS AIR SOLENOID VALVE WITH SOLENOID COIL

The FESTO CPA14-M1H-5JS is a high-performance 5/2 bistable air solenoid valve, engineered for precise pneumatic control in industrial automation. It features robust die-cast aluminium construction and comes with the FESTO MSZC-3-21 solenoid coil for reliable actuation and energy efficiency.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPA14-M1H-5JS

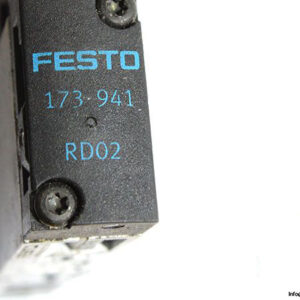

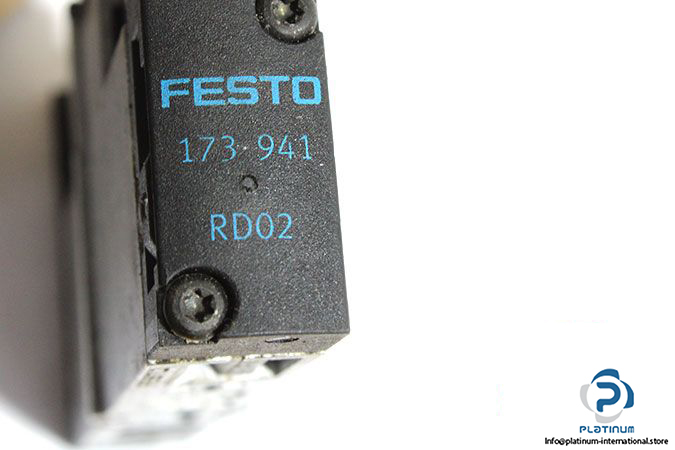

Part No.: 173941

Valve Technical Information

• Fluid: Air
• Function: 5/2 Bistable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 2 to 8 bar
• Nominal Flow Rate: 600 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast Aluminium
• Ambient Temperature: -5 to 50 °C

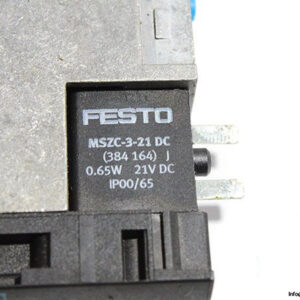

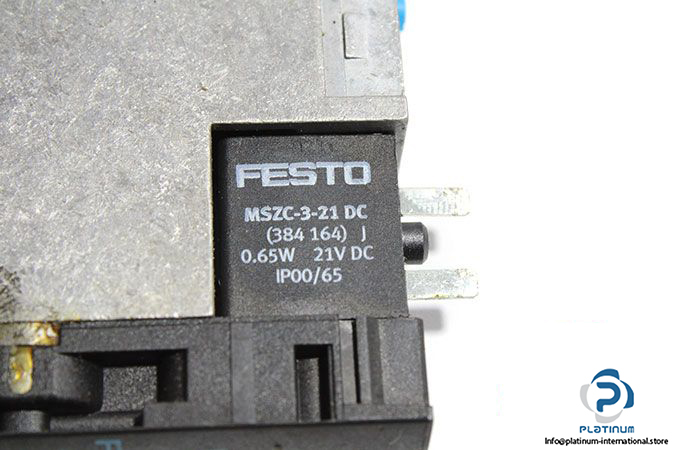

Solenoid Coil Attachment: FESTO MSZC-3-21

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21
Part No.: 384164

Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP00 / IP65
